C4210 SOM

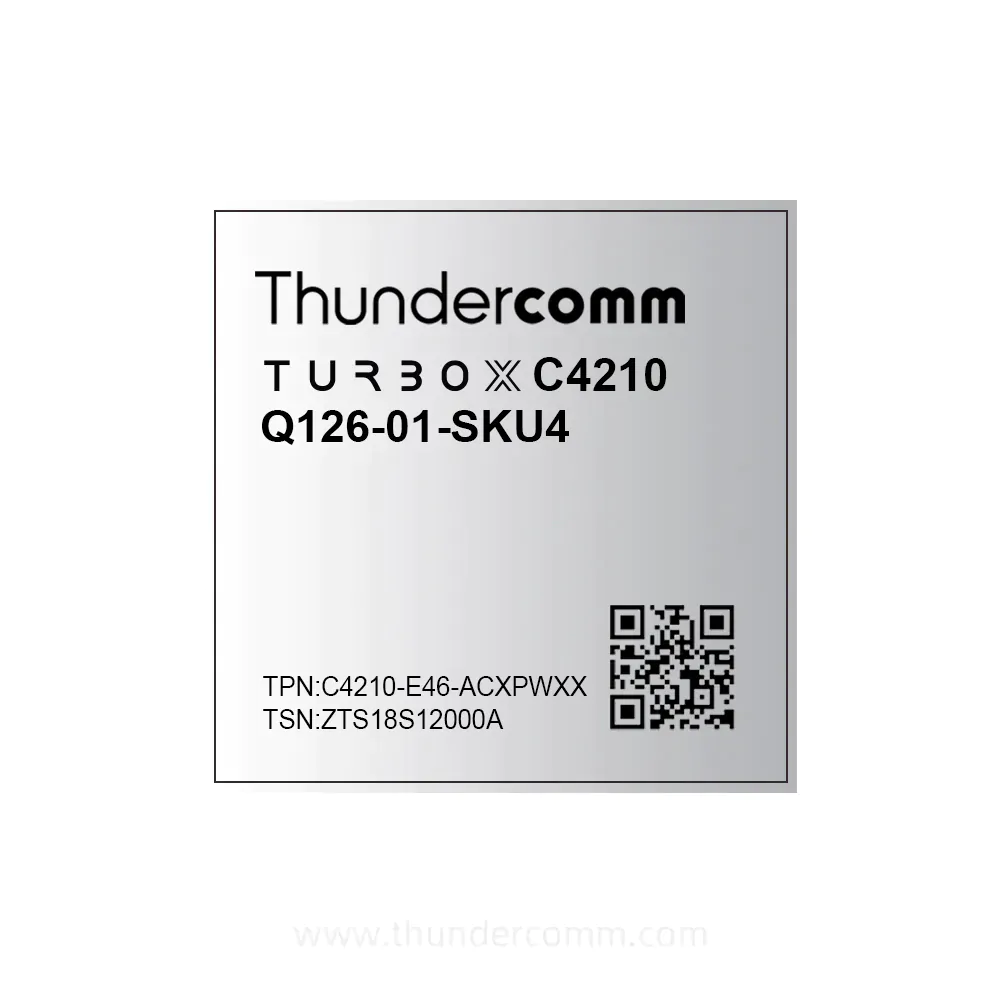

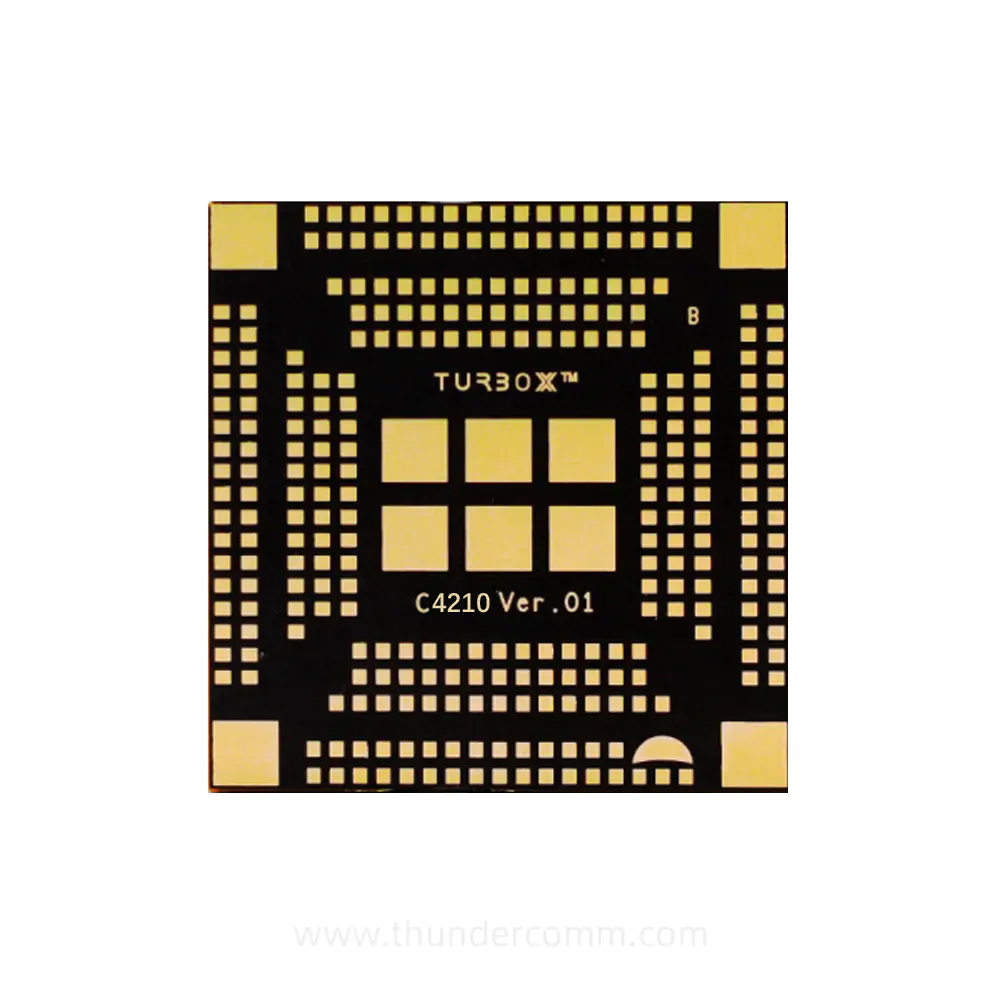

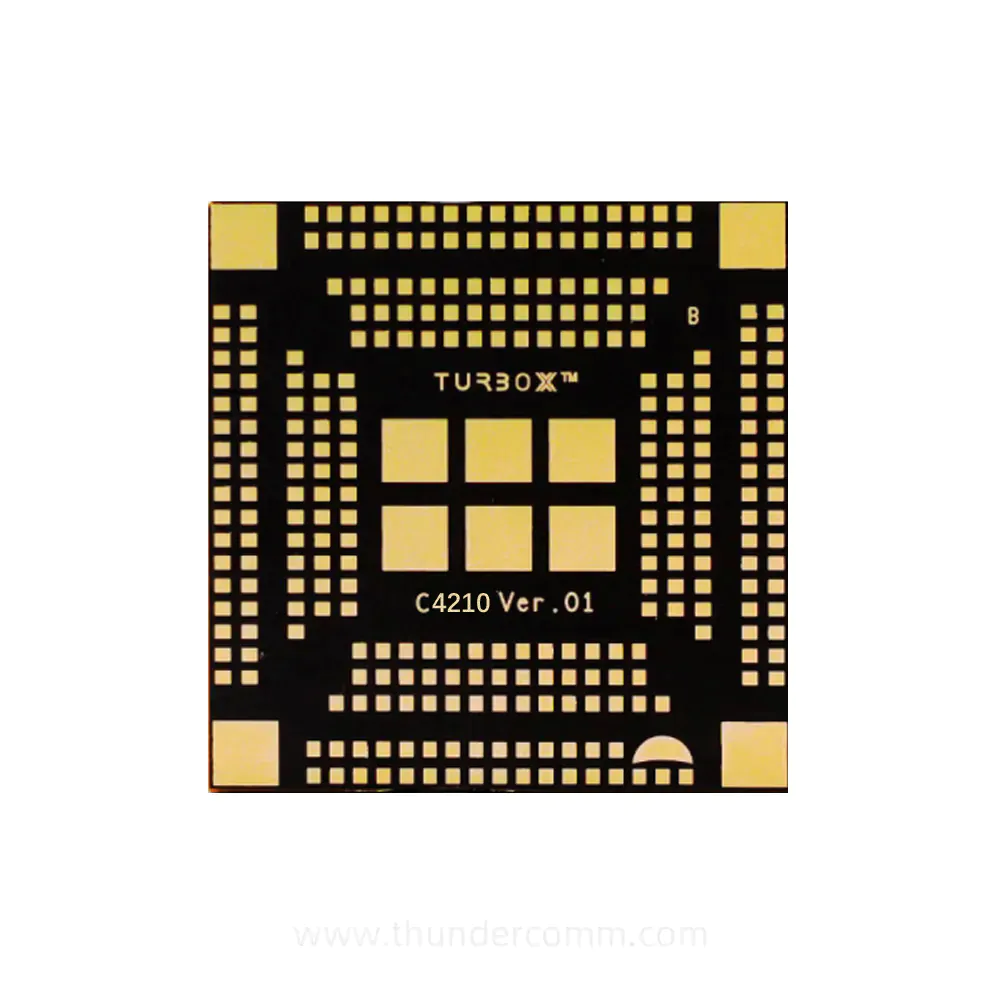

TurboX C4210 SOM (System On Module) is designed based on the Qualcomm® QRB4210 platform. It brings high-value features to mid-tier devices, designed to support advanced graphics, triple ISPs for advanced dual-camera experience, dedicated compute DSP for computer vision and video post-processing, etc. The form factor of the module is 34mm×35mm×2.9mm LGA package which can be fit into devices including robotics, dash camera, video conference, smart retail, etc. TurboX C4210 SOM is an ideal platform for both industrial and consumer applications requiring high data rates multimedia function and can help to rapidly develop cost-effective cellular devices to the market.

Overview

C4210 SOM Applications

Robotics

Dash Camera

Video Conference

Smart Retail

C4210 SOM Features

Hexagon 683 DSP with dual-HVX512 for AI computing

Support up to 3 cameras

1080P@60FPS video record and play

C4210 SOM

FHD+(1080*2520) display@60FPS

WLAN 802.11a/b/n/ac and GNSS

8 Cores Kryo™ 260 CPU: 4 x A73@ 2.0GHz + 4 x A53@ 1.8GHz

Specifications

Category Description
Chipset Qualcomm®  QRB4210
Platform Qualcomm® Kryo™ 260 CPU, 4 x Gold @ 2.0GHz + 4 x Silver @ 1.8GHz
Qualcomm® Adreno™ 610 GPU @950MHz
Qualcomm® Hexagon™ 683 with 2 HVX @1.0GHz
Memory 2GB LPDDR4x + 16GB eMMC 5.1
Connectivity WLAN 1×1, 802.11a/b/g/n/ac
GNSS Support GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS
Reserve GNSS_IQ to extend support Qualcomm WGR7640
Encode 1080P@60FPS (H.264/H.265)
Decode 1080P@60FPS (H.264/H.265/VP9)
Display Interfaces 1x MIPI-DSI 4-lane; FHD+(1080*2520)@60FPS
Camera Interfaces 3x MIPI-CSI, 4-lane, 2.5 Gbps per lane;
3 x ISP (13 MP + 13 MP)/(25 MP + 5 MP) at 30 FPS or (16 MP + 16 MP) at 24 FPS
Other Interfaces 1 x SoundWire; 1 x USB 3.1; 1 x SD Card; 3 x I2S; 8 x QUP; GPIOs
Operation Temperature -25℃ ~ +75℃
Voltage 3.8V ~ 4.2V
Dimensions 35mm x 34mm x 2.9mm
OS Support Linux
