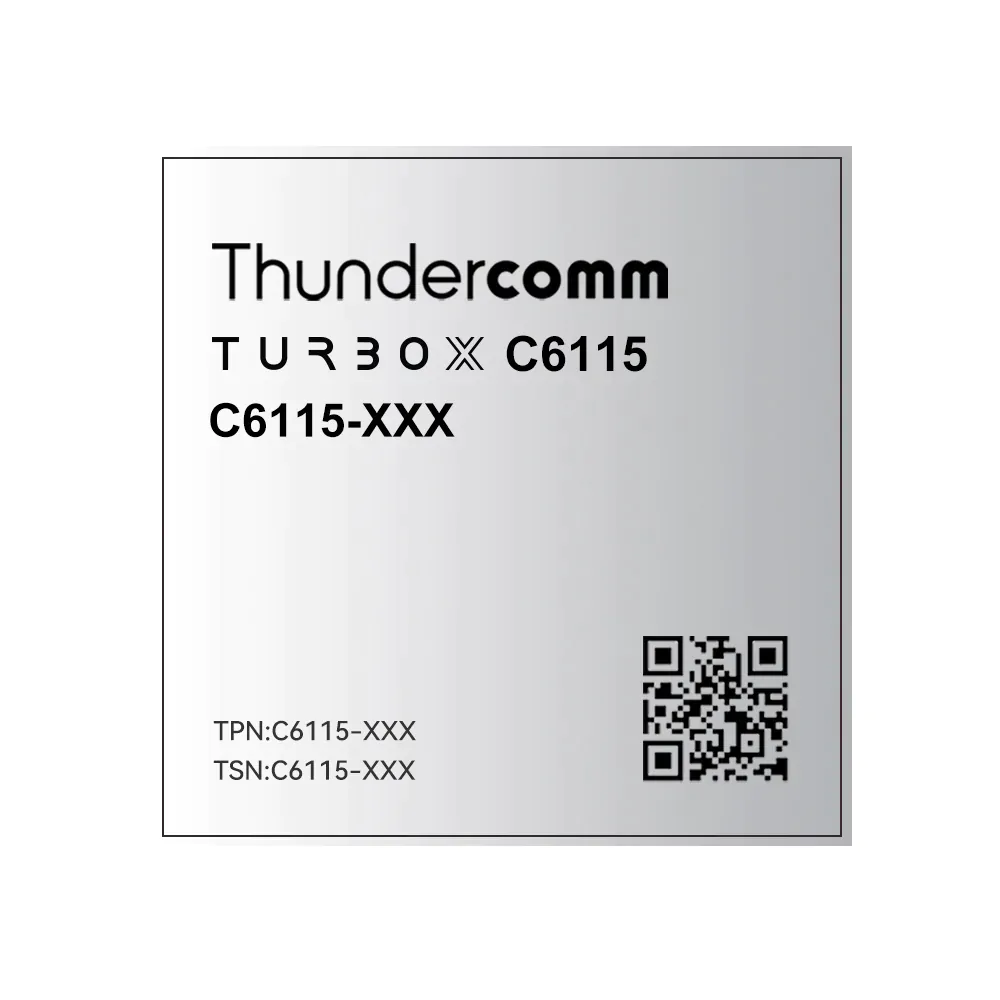

C6115 SOM

The C6115 SOM (System on Module) is designed based on the Qualcomm® SM6115 platform. It is pin-to-pin compatible with C4290/C4210 (the SOM used on RB2). It brings high-value features to mid-tier devices and is designed to support advanced graphics, triple ISPs for advanced camera experience, dedicated compute DSP for computer vision and video post-processing, etc. The C6115 SOM can be fit into devices including Digital Signage, Smart Camera, Industrial Robot, Tablet, Handy Terminal, etc. C6115 SOM is an ideal platform for both industrial and consumer applications requiring high data rates multimedia function and can help to rapidly develop cost-effective cellular devices for the market.

Overview

TurboX C6115 SOM Applications

Digital Signage

Smart Camera

Industrial Robot

Tablet

Handy Terminal

TurboX C6115 SOM Features

Discrete Memory

Easy to change the memory
configuration to save cost

Video

1080P@60FPS encode / 1080P@60FPS decode

Always-on Processor

Support always-on use cases at reduced power level

C6115 SOM

Connection

802.11ac, BT 5.0

Display Support

FHD+, 1080 x 2520 @60 Hz

3x image signal processors (ISPs)

13MP+13MP+5MP/13MP + 8MP + 8MP

Specifications

Category Description
Platform Qualcomm® SM6115
Qualcomm® Kryo™ 260 CPU, 4 x Gold @ 2.0GHz + 4 x Silver @ 1.8GHz
Qualcomm® Adreno™ 610 GPU @950MHz
 Qualcomm® Hexagon™  2x HVX @1.0GHz
Memory LPDDR4x 4GB + eMMC 64GB
OS Support Android 14, Linux*
Size & Form Factor 34mm x 35mm x 2.9mm / LGA
Operation Temperature –25℃ ~ +75℃
WLAN 802.11a/b/g/n/ac
Bluetooth BT 5.0
Display Interfaces 1x MIPI-DSI 4-lane, support HD+(720 × 1680)@60FPS
Camera   Interface MIPI0&1 support D-PHY 1.2/C-PHY 1.0
MIPI2 supports D-PHY 1.2 only
Real-time sensor input resolution: 13 MP + 13 MP/25 MP + 5 MP at 30 fps or 16 MP + 16 MP at 24 fps
Three cameras: 13 MP + 13 MP + 5 MP or 13 MP + 8MP + 8 MP
Two cameras: 25 MP + 5 MP or 21 MP + 8 MP
Video Encode: 1080P@60FPS (H.265)
Decode: 1080P@60FPS (H.265/VP9)
Other Interface 1 x SoundWire; 1 x USB 3.1; 1 x SD Card; 3 x I2S; 8 x QUP; GPIOs
Certificate FCC*/CE*/JATE*/TELEC*/KC*

* Planning or in progress
