C865C Development Kit
Thundercomm TurboX C865C Development Kit is based on the TurboX C865C SOM that facilitates accelerated development of innovative, power-efficient, high computing robots and drones for enterprise, industrial, and professional service applications.
At the heart of the kit is the QCS8250 processor. Customized for robotics applications, this processor offers powerful heterogeneous computing architecture that delivers 15 Tera Operations Per Second of compute. It also offers incredible ML (Machine Learning) accuracy, a powerful ISP (Image Signal Processor) with support for multi concurrent cameras, a dedicated computer vision engine for EVA (Enhanced Video Analytics), as well as the new HTA (Hexagon™ Tensor Accelerator). Its fifth-generation Qualcomm® AI Engine powers inferencing and accuracy with the dedicated HTA. With long life support to 2028. The QCS8250 processor and TurboX C865C platform cater to a wide range of applications, such as Video Conference, Industrial Robot, Medical Device, Industrial Drone, VR/AR, etc. TurboX C865C Platform offers flexible options for development and commercialization in terms of development board offerings for prototyping, off-the-shelf SOM (System-on-module) solutions, and flexibility for chip-on-board designs.
Applications:
TurboX C865C Development Kit Main Components:

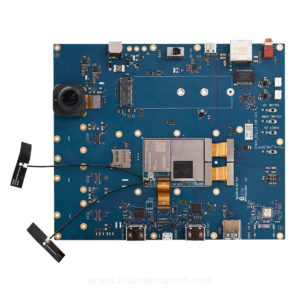

• DK Board: Functioning together with C865C SOM, the board supports multiple interfaces to connect camera module, SD card, HDMI OUT, HDMI IN, USB and M.2 (PCIE) device, as well as on-board UART debug port, buttons, LED, etc.
• Camera with FPC (IMX577)
• Antenna
• Power adaptor
TurboX C865C Development Kit Applications
Video Conference
Industrial Robot
Medical Device
Industrial Drone
VR/AR
TurboX C865C Development Kit Highlights
Advance Imaging capability
Gigapixel speed ISP powered by top of the line Qualcomm® Spectra™ 480 ISP with ability to process 2 Gigapixels per second. This Gigapixel speed delivers new camera features including 8K video recording, 7 camera concurrency, capture 200-megapixel photos, and simultaneously capture 4K HDR video and 64 MP (with zero shutter lag) photos.
On-device intelligence powered by Qualcomm Artificial Intelligence (AI) Engine
The TurboX C865C Development Kit supports the leading 5th generation Qualcomm AI Engine with the brand-new Qualcomm Hexagon™ Tensor Accelerator, pushing 15 trillion operations per second(TOPS) with maximum efficiency to run complex AI and deep learning workloads at the Edge.
Advanced connectivity
Qualcomm® FastConnect™ 6800 Subsystem with Wi-Fi 6 (802.11ax), 802.11ac Wave 2, 802.11a/b/g/n.
Support for 5G including 5G mmWave and sub-6 GHz based of Qualcomm® Snapdragon™ X55 5G Modem-RF System via a companion module. Using 5G technology mission critical and wide scale deployments with low end-to-end latency is possible.
Heterogenous computing with efficient power budgets
The TurboX C865C Development Kit provides powerful heterogeneous computing capabilities using the octa core Qualcomm® Kryo™ 585 CPU, powerful Qualcomm® Adreno™ 650 GPU, multiple DSPs (compute, audio, and sensor) and ISPs. The TurboX C865C Development Kit is designed to support large industrial and enterprise robots as well as small battery-operated robots with challenging power and thermal dissipation requirements.
Flexible design options for commercialization
In addition to a feature packed development kit, the platform offers a range of solutions for commercialization from off-the-shelf System-on-Module (SoM) solutions to speed commercialization, to the flexibility for chip-on-board designs for cost-optimization at scale.
Advance Security
Qualcomm® Secure Processing Unit (SPU) offers vault-like security providing Secure Boot, Hardware root of trust , cryptographic accelerators, Qualcomm® Trusted Execution Environment and camera security. Qualcomm® Crypto Engine Core is FIPS 140-2 certified.
| Category | Description |

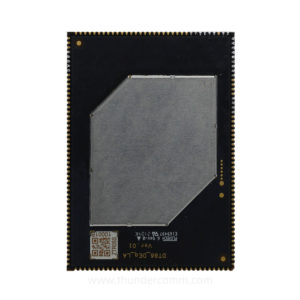

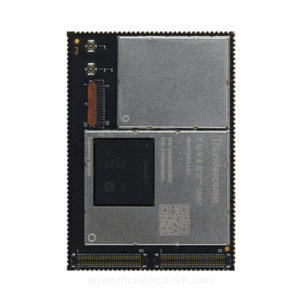

| SOM on board | TurboX C865C SOM |
| Display Interfaces | 1x DP 1.4, 1x HDMI Out (4K60) |
| Audio Interfaces | 3 x MICs 2 x Speaker out (WSA8815) 1 X HDMI In with Audio (Over I2S interface) 1 X HDMI Out with Audio (Over I2S interface) |
| Camera Interface | 3 x 4 Lanes D-PHY Camera (IMX577) 1 x 3 Lanes C-PHY Camera (Samsung S5KGW1SP03-FGX9) |
| General Interfaces on Mother Board | 1 x USB 3.1 Type C 1 x USB 3.1 Type A 1 x Micro USB(For Debug) 1 x SD card; 1 x 1000baseT Ethernet(Over PCIE 1 Lane) 1 x M.2 for NVME SSD Interface (Over PCIE 2 Lane) 1 x HDMI Out 1 x HDMI In 6 x LEDs 4 x Keys (Vol Up/Down, Force USB Boot, Power) |
| Power Supply | DC IN 12V 3A, Battery Interface, Fast charger(parallel charger) |
| Operating Environment | Operation Temperature: -25℃ ~ 75℃ Operation Humidity: 5%~95%, non-condensing |
| Dimension | 150mm x 178mm |
| OS Support | Android 10 |
| Type | Category | Document Name | Update Date |
| Public Documents | - | TurboX-C865C-SOM-Product-Brief-EN.pdf | - |
| Private Documents | Get the Private Documents > | ||
Get Support
Help Center
Technical Support
(for cusmtomer)
TurboX C865C Development Kit
Package List:
DK + TurboX C865C SOM +Adapter+Camera+Antennae
Lead Time:Shipping within 2 weeks after payment.
$1299
