Cost-effective AI compute module to provide highly intelligent experiences for IoT products

The CM6125/C6125 SOM (System on Module）is designed based on the Qualcomm® QCM6125/QCS6125 platform which can be seen as a successor of Qualcomm® SDA660/SDM660 platform. Powered by the 3rd generation Qualcomm® AI Engine: Adreno 610 GPU and Hexagon 686 DSP (dual-HVX512), the Qualcomm® QCM6125/QCS6125 platform can provide advanced on-device imaging and computing, such as Smart Cropping, 3D Face Recognition, and Object Detection. It is an ideal platform for customers to design smarter and more engaging products to the market.

Overview

CM6125/C6125 SOM Applications

Dash Camera

Video Conference

Robotics

New Retail Devices

Handheld Devices

CM6125/C6125 SOM Features

On-device Al

Al Engine with improved Adreno 610 GPU and Hexagon 686 DSP(dual-HVX512)

High Precision Positioning

Gen 9 VT2; GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS

Staggered HDR

CM6125/C6125 SOM

Super LTE Connectivity

LTE Cat13 supporting 2 x 20MHz CA at 400Mbps DL & 150Mbps UL

Video Processing

4K@30fps H.265/H.264 Encode & Decode

Quick Charge 3.0 Technology

Specifications

Category CM6125-EA CM6125-NA C6125
Region Europe/India/Korea/South Asia/Latin America/Australia/South Africa/China/Japan North America Global(Wi-Fi only)
Platform Qualcomm® QCM6125/QCS6125
Kryo260 CPU: 4 x Gold @ 2.0GHz + 4 x Silver @ 1.8GHz
Qualcomm® Adreno™ 610 GPU,Adreno™ DPU 851
Qualcomm® Compute DSP with Hexagon Vector eXtensions (dual-HVX512), Audio DSP
Memory LPDDR4x 2GB/3GB + eMMC 5.1 32GB; LPDDR4x 4GB + eMMC 5.1 64GB;
Connectivity Wi-Fi 1 × 1 802.11a/b/g/n/ac, Bluetooth 5.0
Air interface LTE FDD B1/B2/B3/B4/B5/B7/B8/B18/B19/B20/ B26/B28(A+B) B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 NA
LTE TDD B34/B38/B39/B40/B41 B41 NA
WCDMA B1/B2/B4/B5/B6/B8/B19 B2/B4/B5 NA
GSM/EDGE 850/900/1800/1900 MHz NA NA
GNSS Gen 9 VT2; GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS NA
Encode 4K@30FPS/1080P@120FPS (H.265/H.264/VP8)
Decode 4K@30FPS/1080P@120FPS (H.265/H.264/VP8/VP9)
Display Interfaces One 4-lane; DSI D-PHY 1.2, Split link supported, Up to FHD+ (1080 × 2520)@60FPS;
One DisplayPort 1.4 over USB-C (external)
Camera Interfaces 2 x ISP 14 bit: 16 + 16 MP, and 25 MP @30FPS ZSL
MIPI combination D-PHY 1.2 /C-PHY 1.0 configurable in 4/4/4 or 4/4/2/1
Other Interfaces 1 x  Slimbus; 1 x  Soundwire; 1 x USB 3.0 with DP/ USB 2.0 ; 1 x SD Card; 5 x I2S; 10 x QUP; 2 x UIM; GPIOs
Operating Environment Operation Temperature: -25℃ ~ +75℃
Operation Humidity: 5%~95%, non-condensing

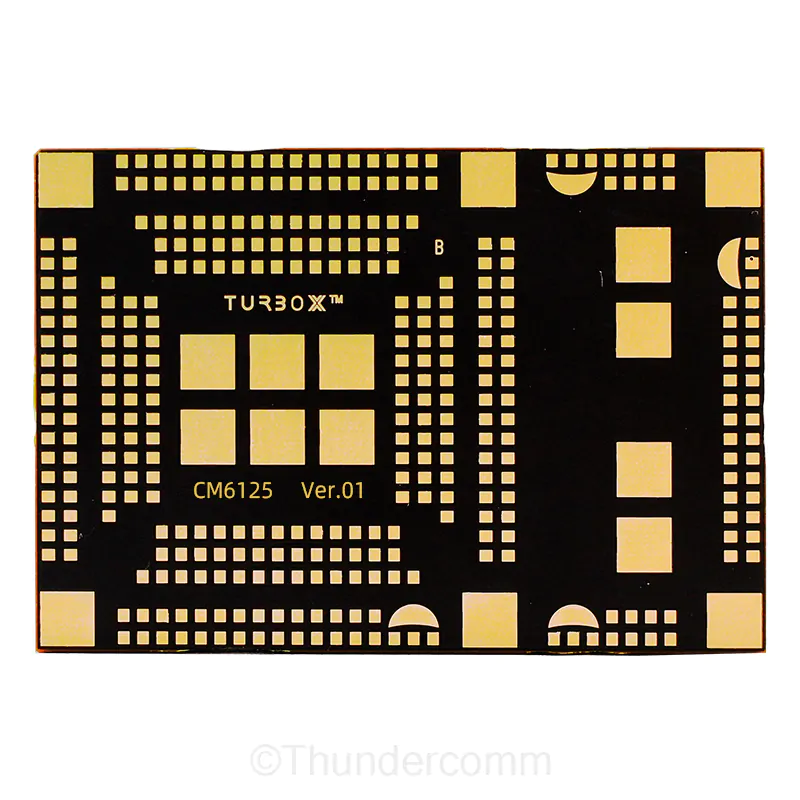

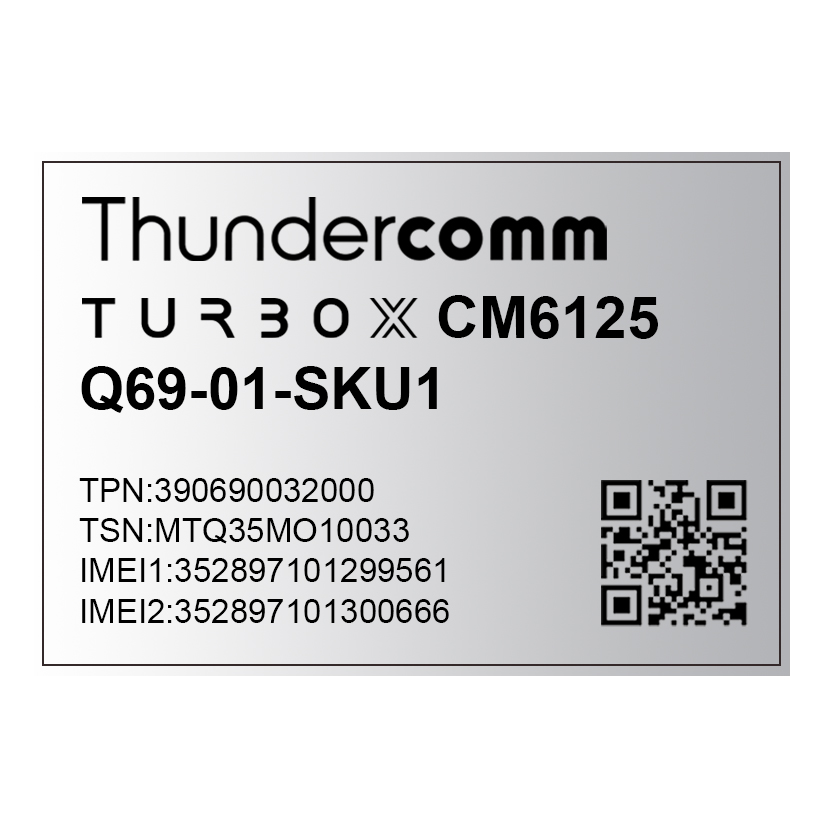

Dimensions CM6125: 51mm x 35mm x 3mm (Modem version)

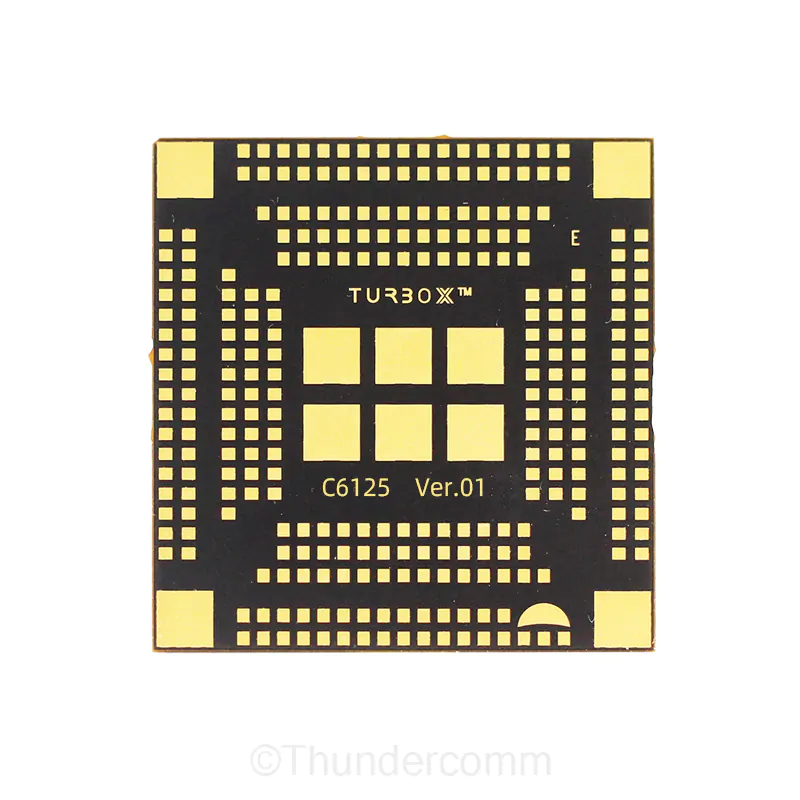

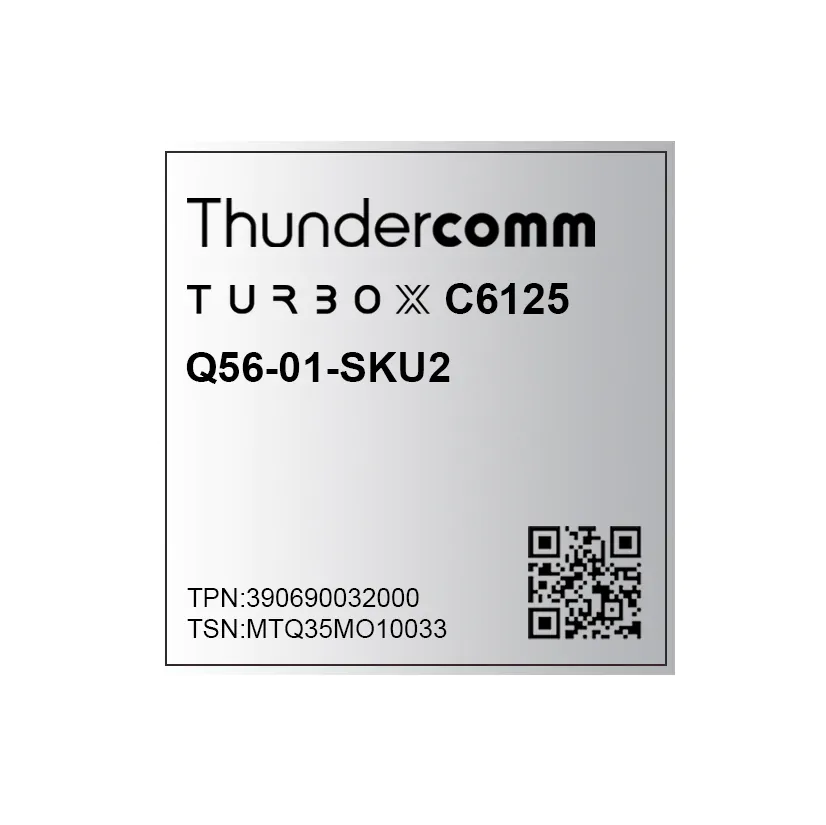

C6125: 34mm x 35mm x 3mm (Wi-Fi version)
OS Support Android 10, Android 11*, Android 13*
Certification CM6125: CE, FCC, RoHS, Reach, Halogen Free, GCF
C6125: CE, FCC, KC, JATE, TELEC, RoHS

*: Planning
