CT7280 Development Kit

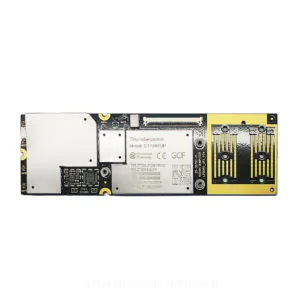

Thundercomm TurboX CT7280 Development Kit is designed based on CT7280 QCARD. This is the latest IoT platform integrated with Snapdragon® 7c+ Gen 3 (SC7280) which is a 6 nm processor with superior performance and power efficiency, as well as high AI capability (8 TOPS). TurboX CT7280 support Wi-Fi 6E with DBS, Long Range Bluetooth and optional 5G NR connection capabilities. It also has a rich set of peripheral interfaces, including both USB 3.1 and USB 2.0 concurrency and PCIe. TurboX CT7280 supports Windows 11 and Windows 11 IOT. The CT7280 QCARD is a high performance Windows SOM for building PC, Tablet, Mini PC, Industrial PC , POS, providing customers with hardware interfaces and software SDK to validate functions and build the prototype quickly.
Applications:
TurboX CT7280 Development Kit Applications
PC
Tablet
Mini PC
Industrial PC
POS
Category | Description |
Platform | Snapdragon® 7c+ Gen 3 (SC7280) |
Camera Interfaces | Spectra ISP 3x 22MP, 5x CSI |
Display Interfaces | Primary: FHD+ @ 144 DSI or eDP1.4 External:4K @60 DSC v1.2DP over USB3 |
Audio Interfaces | 3× DMICS, 1× Headset, 1× I2S |
Keypad Interfaces | IT8987 |
USB Interfaces | 1× USB3.1 Gen 1, 1× USB2.0 |
PCIe Interfaces | 2×PCIe Gen3 (3 lanes) |
WLAN Interfaces | WLAN 2×2 |
Connectivity | 5G NR Sub-6G + LTE (optional) |
Power Interfaces | DP Over Type-C |
Other Interfaces | 1× I2C, 1× SPI, 1× UART, 1× JTAG |
Dimensions | 200mm × 135mm |
OS Support | Windows11 / Windows 11 IOT |
Type | Category-1 | Catagory-2 | Document Name |
Public Documents | SOM | Product Brief | [tc-M2-1110-en]_TurboX CT7280 SOM_Product Brief_V1.0.pdf |
Dev Kit | Quick Start Guide | [tc-M2-2110]_TurboX CT7280 DK_Quick Start Guide_V1.0.pdf | |
Private Documents | Get the Private Documents > |

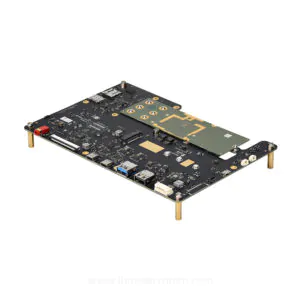

TurboX CT7280 Development Kit
Package List:
• Mainboard + CT7280 QCARD + USB Cable + Power Cable : $1999
• LCD & Cable : $300
• LCD & Cable : $300
$2299
