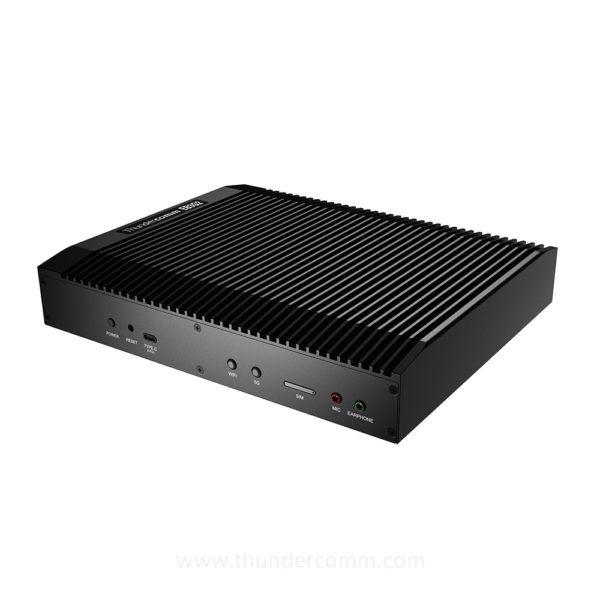

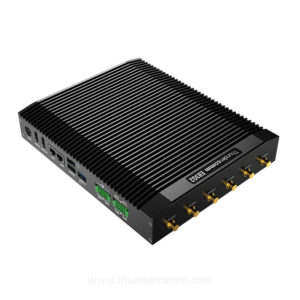

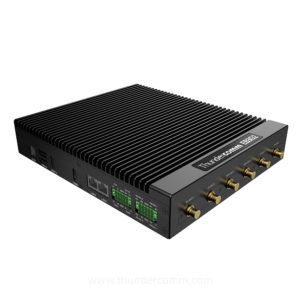

EB3G2 Edge AI Station

EB3G2 Edge AI Station is a high-performance AI edge computing device. It adopts an industrial-grade fanless design. Embedded with the built-in edge software OSware.Edge, it provides customers with device management, video management, AI algorithm configuration, application upgrades, edge-cloud collaboration, customization, and multi-cloud connectivity. EB3G2 delivers superior 14 TOPS of AI performance and up to 8 channels full HD video processing, which can be widely used in smart retail, smart building, smart factory, smart transportation, and many other edge AI application scenarios.

Applications:

Amazon Qualified Device
EB2/EB3G2/EB5/EB6S Edge AI Station are AWS-qualified edge devices. Customers can use AWS IoT Greengrass on those Edge AI Stations, to extend cloud capabilities to on-premise devices, which can be closer to the source of information to collect and analyze data, autonomously respond to local events, and communicate securely with each other on the local network.
AWS Partner Solutions Finder >

EB3G2 Edge AI Station Features

Premium performance with high AI computing power and multiple channel decoding

For intelligent edge computing, EB3G2 provides 14 TOPS high AI computing power and supports up to 8 channels of 1080P HD video decoding, which is suitable for multi-channel video streaming AI analysis scenarios such as building, community, school, factory, and retail.

Rich interfaces, multiple type of network for Edge computing scenarios

EB3G2 supports 5G, WiFi, adaptive Gigabit Ethernet, RS232, RS485, CAN, USB3.0 and other interfaces. It also supports SD cards, M.2 SSD/SATA HDD expansion, covering different intelligent edge application scenarios.

Industrial design for harsh conditions

Robust industrial level quality, fanless design, ultra-low power consumption, flexible deployment, plug and play, safe and reliable, easy to cope with any complex environment challenges.

Deeply optimized streaming media AI analysis service

With built-in deeply optimized streaming media AI analysis service TurboX Stream, EB3G2 features image zero copy, hardware acceleration, batch reasoning, algorithm sharing, and supports standard libraries such as SPL, ALG, and MBC, making AI algorithm deployment, verification, and delivery easy and fast.

Visual configuration of AI algorithms and applications

Provide WebUI visual management interface, which can localize equipment management, system management, OTA upgrade, algorithm configuration and other functions, support local view of alarm events, picture capture, video slice recording, and support rapid docking of third-party platforms

Edge cloud collaboration, large-scale deployment, one-stop management

It supports IoT Harbor platform management, can configure edge cloud connection with one click, realize cloud device monitoring, OTA/algorithm upgrade, alarm reporting, etc., and also supports access management of mainstream shared cloud platforms such as AWS IoT Greengrass

EB3G2 Edge AI Station Scenarios

Smart City

Smart Building

Smart Retail

Smart Factory

Smart Transportation

Smart Grid

Category Description
Platform OS Support LU / Android
SoC QCS6490
Qualcomm® Artificial Intelligence (AI) Engine: 12 TOPS CPU: 8cores @ 1Gold+ (2.7 GHz); Gold (3x 2.4 GHz); Silver (4x 1.9 GHz)
GPU: Adreno 643
Video Processor Adreno VPU 633
Video decode up to 4K60 for H.264/H.265/VP9
Video encode: Up to 4K30 for H.264/H.265
Video concurrency: 1080p60 decode and 1080p60 encode/ 4K30 decode + 1080p30 encode
System Memory RAM 8GB LPDDR4X
Storage Flash 128GB UFS2.2
Expansion 1 x Micro SD Card slot, 1 x M.2 connector for 2280 NVME SSD (SSD optional)
I/O Interface HDMI 1 x HDMI out
Audio 2 x 3.5 inch Jack, 1 x MIC, 1 x Earphone
Ethernet 2 x RJ45, Gigabit ethernet(10/100M/1000M)
USB 3 x USB 3.1 Type A , 1 x USB 2.0 Type A , 1 x USB3.1 Type C
COM Port Phoenix connector, 2 x RS485, 2 x RS232
DI/DO Phoenix connector, 4 x DI(Photocoupler), 2 x DO(Switch: Short/OFF)
SIM 1 x NanoSIM card slot
Antenna 6 x Antenna connector, 2 x for WIFI, 4 x for 4G/5G
Debug Port 1 x Micro USB( for system debug), 1 x Micro USB( for 4G/5G module)
Wireless Connectivity WIFI Support M.2 WIFI6 module (WIFI6 module optional)
4G/5G Support M.2 3042 4G/3052 5G NR Sub-6 module (4G/5G module optional)
M.2 connector support PCIe/USB3.0 data bus
5G module multimode support: 2G/3G/4G/5G NR sub-6
Input&Indicators Buttons Power key, Reset key, Force Download key
LEDs Power status, WIFI status, 5G Status
Others RTC Battery CR2032 RTC Battery
Power DC Input Input DC range support from 12V to 24V
Mechanical Dimension 235mm x 200mm x 42mm
Weight Body: 1750g, AC-DC adaptor: 452g
Mount Desktop, Wall mount
Environment Proof level IP40
Operation Temperature & Humidity -20~60℃, 5%~95% non-condensing
Storage Temperature & Humidity -40~80℃, 5%~95% non-condensing
Catagory Class Type Document Name
Public Documents EB3G2 Edge AI Station Product Brief EB3G2_Edge_AI_Station_Product_Brief_V1.1.pdf
Private Documents Get the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

EB3G2 Edge AI Station (WiFi Version)
Package List: • EB3G2 Edge AI Station × 1
• AC-DC adaptor × 1
• AC cable × 1
• Antenna × 2
• Phoenix terminal × 2
EB3G2 Edge AI Station (5G Version)
Package List: • EB3G2 Edge AI Station × 1
• AC-DC adaptor × 1
• AC cable × 1
• Antenna × 6
• Phoenix terminal × 2
