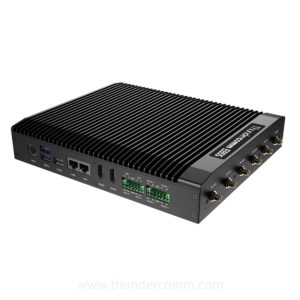

EB5S Edge AI Station
The EB5S Edge AI Station is a high-performance AI edge computing device that supports 5G and Wi-Fi 6 connectivity. Featuring an industrial-grade fan-less design, it is optimized at the operating system level to maximize performance. With its built-in Edge OS, the device offers device management, video management, AI algorithm configuration, application upgrades, edge-cloud collaboration, customization, and multi-cloud connectivity for customers. The EB5S delivers 15 TOPS of AI performance, making it ideal for a variety of edge AI applications such as smart retail, smart buildings, smart factories, smart transportation, and many other edge AI application scenarios.
Applications:
Amazon Qualified Device
EB2/EB3G2/EB5/EB5S/EB6S Edge AI Station are AWS-qualified edge devices. Customers can use AWS IoT Greengrass on those Edge AI Stations, to extend cloud capabilities to on-premise devices, which can be closer to the source of information to collect and analyze data, autonomously respond to local events, and communicate securely with each other on the local network.
AWS Partner Solutions Finder >
EB5S Edge AI Station Features
• Premium performance with super high AI computing power.
• Advanced streaming media AI analysis service with deep optimization.
• Centralized management through End-edge-cloud platform.
• Versatile expansion options with a wide range of interfaces.
• Robust industrial design for challenging environments.
• Visual configuration of AI algorithms and applications.
EB5S Edge AI Station Scenarios
Smart City
Smart Building
Smart Retail
Smart Factory
Smart Transportation
Smart Grid
| Category | Description | |
| PlatForm | OS Support | LU / Android |
| SoC | QRB5165(Linux) / QCS8250(Android) | |
| Qualcomm® Artificial Intelligence (AI) Engine (AI Performance: 15 TOPS) |
CPU: Qualcomm® Kryo™ 585 CPU, 8cores @1x 2.84GHz; 3x 2.4GHz; 4x 1.8Ghz | |
| GPU: Qualcomm® Adreno™ 650 GPU | ||
| DSP: Qualcomm® Hexagon™ 698 Processor | ||
| Image Processor | Qualcomm® Spectra™ 480 ISP | |
| Video Processor | Qualcomm® Adreno™ 665 VPU, H264 & H265 codec support; video decoding: 8k@60fps; video encoding: 8k@30fps |
|
| System Memory | RAM | 8GB LPDDR5x |
| Storage | Flash | 128GB UFS3.0 |
| External expansion | 1x MicroSD Card slot； 1x M.2 Connector, support 2280 NVMe SSD(optional) |
|
| I/O | HDMI | 2x HDMI out |
| Audio in/out | 1x MIC, 1x Earphone | |
| Ethernet | 2x RJ45, Gigabit ethernet(10/100M/1000M) | |
| USB | 3x USB 3.0 Type A , 1x USB3.1 Type C | |
| COM Port | Phoenix terminal, 2x RS485, 2x RS232 default | |
| DI/DO | Phoenix terminal, 4x DI(Photocoupler), 2x DO(Switch: Short/OFF) | |
| SIM | 1x NanoSIM card slot | |
| Antenna | 2x for WIFI, 4x for 4G/5G module | |
| Wireless Connectivity | WIFI | 802.11a/b/g/n/ac/ax, 2x2 MIMO |
| 4G/5G | 1x M.2 connector, support 3042 4G / 3052 5G NR Sub-6 module (optional) | |
| Input&Indicators | Buttons | Power button, Reset button |
| LEDs | Power status, WIFI status, 5G Status | |
| Others | RTC Battery | CR2032 RTC Battery |
| Power | DC Input | Input DC range support from 12V to 24V |
| Mechanical | Dimension | 235mm x 200mm x 42mm |
| Weight(5G version) | body: 1911g, adaptor: 449g, giftbox:2814g | |
| Mount | Desktop, Wall mount | |
| Environment | Proof level | IP40 |
| Operation Temp & Humidity | -20 ~ 60℃, 5%~95% non-condensing | |
| Storage Temp & Humidity | -40 ~ 70℃, 5%~95% non-condensing | |
| Anti-Vibration | 0.5Grms @ 5 ~ 500 Hz, random | |
| Certification | FCC, PTCRB, TSCA, CP65 | |
| Catagory | Class | Type | Document Name |
| Public Documents | EB5S Edge AI Station | Product Brief | Thundercomm_EB5S_Edge_AI_Station_Product_Brief.pdf |
| Private Documents | Get the Private Documents > | ||
Get Support
Help Center
Technical Support
(for cusmtomer)
EB5S Edge AI Station (WiFi Version)
Package List:
• EB5S Edge AI Station × 1
• AC-DC adaptor × 1
• AC cable × 1
• Antenna × 2
• Phoenix terminal × 4
• AC-DC adaptor × 1
• AC cable × 1
• Antenna × 2
• Phoenix terminal × 4
EB5S Edge AI Station (5G Version)
Package List:
• EB5S Edge AI Station × 1
• AC-DC adaptor × 1
• AC cable × 1
• Antenna × 6
• Phoenix terminal × 4
• AC-DC adaptor × 1
• AC cable × 1
• Antenna × 6
• Phoenix terminal × 4
