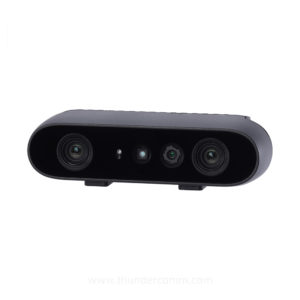

Gemini 2 3D Camera
The compact Gemini 2 3D camera, released in 2023, is based on Active Stereo IR technology and is equipped with Orbbec’s latest custom ASIC for high quality depth processing, IMU and single cable USB 3.0 power + connectivity. The wide FOV and the wide depth sensing range makes Gemini 2 adaptable for many applications, especially for robotics. It is easy to set up and operate with the Orbbec SDK, and delivers extremely accurate and reliable data in various lighting conditions, from pitch black to semi-outdoor.
• Wide Field of View at 91° Horizontal and 66° Vertical
• High quality depth data output from 0.15m to 10m
• Up to 30 fps at 1280X800 depth resolution
• USB Type-C for power and data connectivity
• Multi-camera synchronization and IMU supported
Applications:
Gemini 2 3D Camera Specifications
| Camera Specifications | |
| Depth Technology | Active Stereo IR |
| Wavelength | 850nm |
| Depth Range | *0.15-10m |
| Depth Resolution/FPS | Up to 1280X800@30fps |
| Depth FOV | H91° V66° |
| RGB Resolution/FPS | Up to 1920X1080@30fps |
| RGB FOV | H86° V55° |
| Processing | Orbbec ASIC |
| IMU | Supported |
*Precision: ≤ 2% @ 2m
| Physical Parameters | |
| Data Connection | USB 3.0 Type-C |
| Power Input | USB 3.0 Type-C |
| Trigger | Supported |
| Power Consumption | Average <2.5W |
| Operating Environment | 0℃ - 40℃; Indoor/Semi-Outdoor; 5%-95%RH |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth Map, IR & RGB |
| Dimensions (W*H*D) | 90mm x 25mm x 30mm |
| Weight | 98g |
| Installation | Bottom: ¼-20UNC Back: 2 x M3 |
Gemini 2 3D Camera
The compact Gemini 2 3D camera, released in 2023, is based on Active Stereo IR technology and is equipped with Orbbec’s latest custom ASIC for high quality depth processing, IMU and single cable USB 3.0 power + connectivity. The wide FOV and the wide depth sensing range makes Gemini 2 adaptable for many applications, especially for robotics. It is easy to set up and operate with the Orbbec SDK, and delivers extremely accurate and reliable data in various lighting conditions, from pitch black to semi-outdoor.
$299.99
