Qualcomm® RB3 Gen 2 Lite Development Kit
IoT development kit designed for high-performance compute, accessibility, and flexible and customizable features
The Qualcomm RB3 Gen 2 Lite Development Kit gives developers a valuable combination of impressive performance and customizable features, including powerful AI processing and computer vision, to easily create a broad range of IoT solutions across use cases such as Robotics, industrial, and automation.
The Qualcomm RB3 Gen 2 Lite is based on the Qualcomm® QCM5430/QCS5430 processor. This processor’s scalable performance is designed to deliver superior features and performance across all dimensions of IoT, specifically for Robotics, Industrial Handhelds (IHH), Retail, Cameras, and Drone applications. This includes support for Wi-Fi 6E for ubiquitous coverage, a unified software stack, powerful AI, and expanded interfaces across ecosystems.
Applications:
The QCM/QCS5430 processor was designed with premium features and flexibility to design IoT products. It comes loaded with Wi-Fi 6E for multi-gigabit speeds, seamless connectivity, powerful heterogeneous computing, and edge AI-powered multi-camera support. Select between preset feature packs or customize one according to your product needs today, or wait and easily upgrade OTA (Over the Air) in the future via software to unlock even greater performance.
The platform includes a development kit and software. Developers can select the feature pack that best addresses their needs, and design IoT products that demand advanced performance. The platform includes SDKs that make it easy for developers to use and integrate applications and services. The hardware development kit is also compliant with the 96Boards open hardware specification to support a range of mezzanine-board expansions, beginning with the Vision Mezzanine. The platform includes the Qualcomm® Spectra™ ISP 570L image processing engine for the ultimate photography and videography experience, and comes with a main camera and tracking camera on the Vision Kit. It can connect to and process the output of other cameras such as stereo, depth, and Time-of-Flight (ToF). The Qualcomm® Adreno™ 633 VPU provides high-quality, UltraHD video encode and decode, while the Adreno 1075 DPU enables on-device and external UltraHD display support.
Multi-gigabit Wi-Fi 6E achieves blazing-fast wireless connectivity and low latency. Our Wi-Fi 6E offerings utilize advanced features like Qualcomm® 4K Quadrature Amplitude Modulation (QAM) and support for high-speed 160 MHz channels for multi-gigabit-per-second speeds with superb stability and consistent experiences. With the Qualcomm® Kryo™ 670 CPU and a Qualcomm® Hexagon™ processor featuring a fused AI-accelerator architecture, this solution delivers powerful connections and computing performance, and is purpose-built for industrial and commercial IoT applications such as ruggedized handhelds and tablets, human-machine interface systems, point-of-sale systems, drones, kiosks, edge AI boxes, and connected cameras.
Qualcomm® RB3 Gen 2 Lite Development Kit Applications
Body-Worn Cameras
Industrial PCs
Drones
Collaboration Systems
Dash Cameras
Vehicle Gateways
Edge Boxes
Robots
Surveillance Cameras
Industrial Scanners

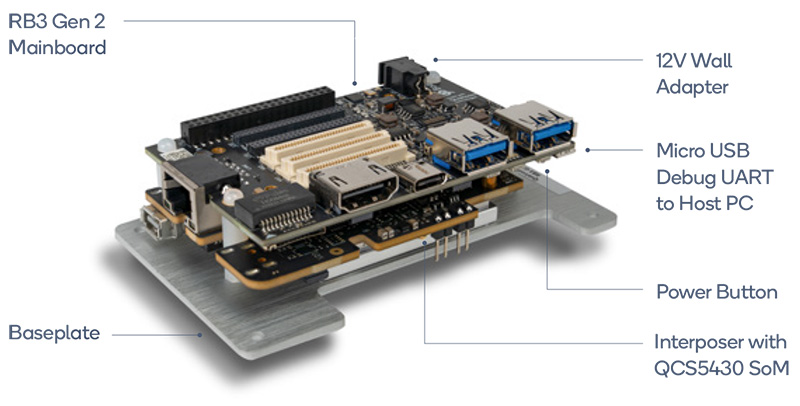

Qualcomm® RB3 Gen 2 Lite Core Kit

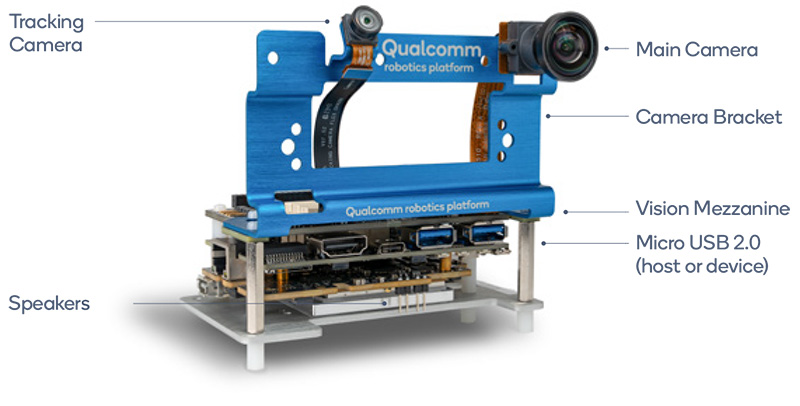

Qualcomm® RB3 Gen 2 Lite Vision Kit

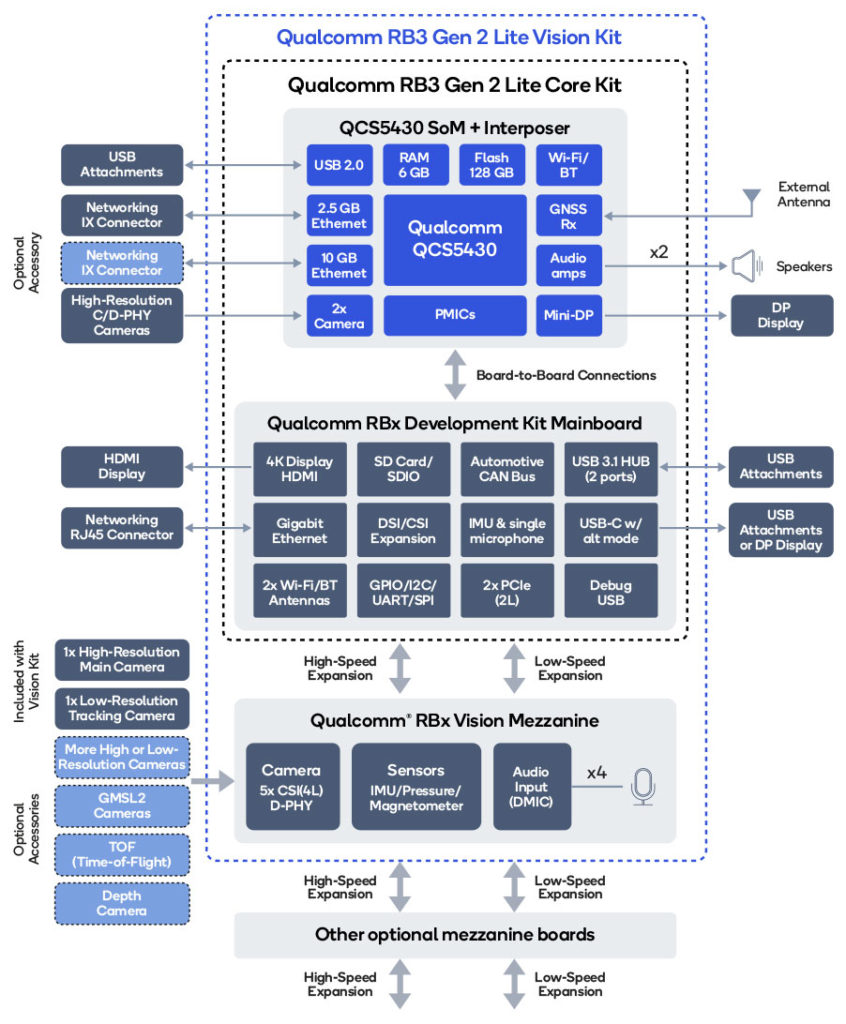

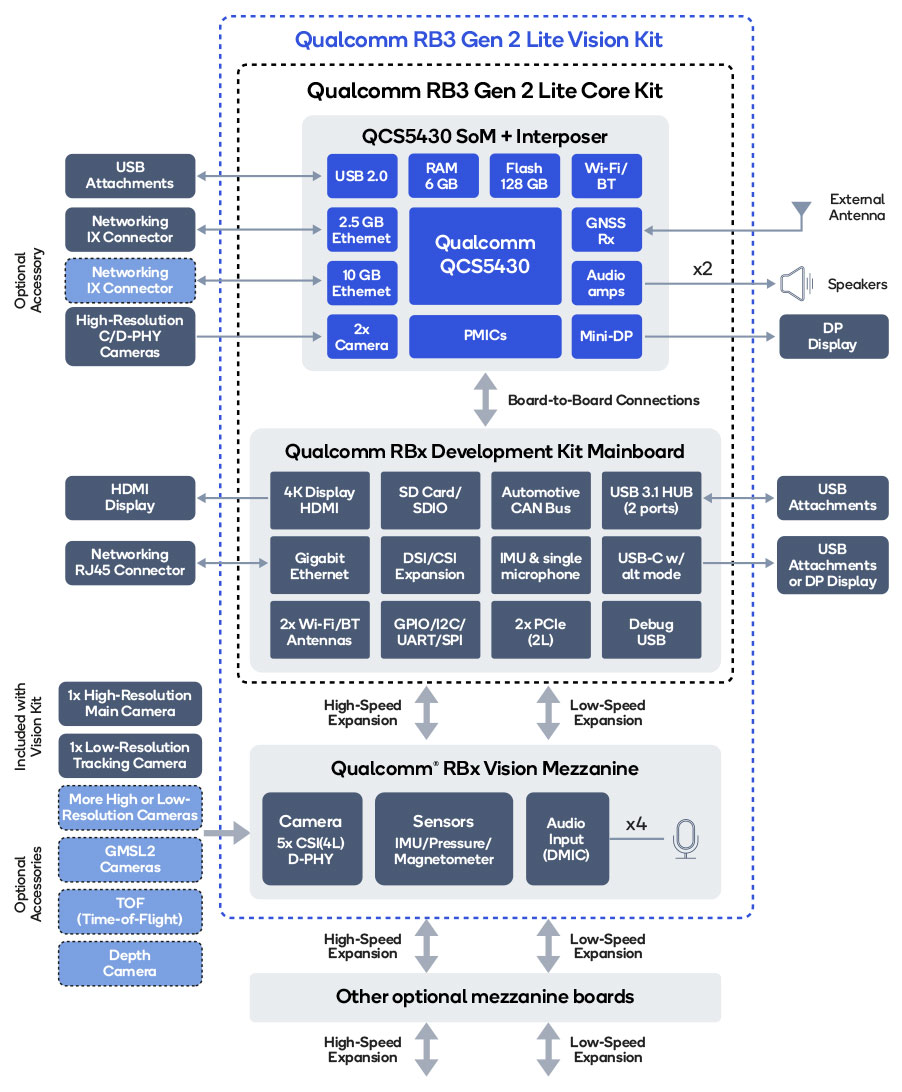

Qualcomm® RB3 Gen 2 Lite Development Kit Block Diagram
Qualcomm® RB3 Gen 2 Lite Development Kit Contents
Core Kit:
• Development board based on the Qualcomm QCS5430 processor

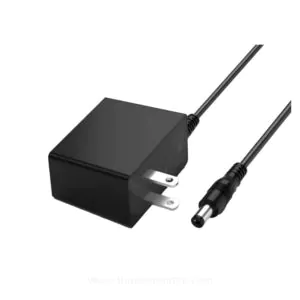

• 12V wall power supply
• USB Type-C cable
• Micro USB cable
• Mini speakers
• Setup guide
• Pick tool for setting switches
Vision Kit only:
• Mounting bracket for CSI cameras
• High-resolution CSI camera
• Low-resolution CSI camera
Software
• Support for Linux, Android
• Qualcomm® Intelligent Multimedia Product SDK (for Linux)
• Qualcomm® Intelligent Robotics Product SDK
• Qualcomm® Neural Processing SDK
• Hexagon SDK
Compatible With
QCM/QCS5430 Specifications
| Feature Pack 1 | Feature Pack 2 | Feature Pack 2.5 | Feature Pack 3 | |
|---|---|---|---|---|
| Chipset | QCx5430 FP1 (Default Config) |
QCx5430 FP2 (Mid) |
QCx5430 FP2.5 (Mid-High)* |
QCx5430 FP3 (High)* |
| CPU | 2 x A78@2.1GHz, 4 x A55@1.8GHz |
1 x A78@2.2 GHz, 3 x A78@2.13 GHz 4 x A55@1.8 GHz |
1 x A78@2.4 GHz, 3 x A78@2.38 GHz 4 x A55@1.8 GHz |
|
| GPU | Qualcomm® Adreno™ 642L GPU @ 315 MHz | Adreno 642L GPU @ 550 MHz | ||
| Support for OpenGL ES 3.2, OpenCL 2.0,Vulkan 1.x, DX FL 12 | ||||
| Modem | Sub6+mmW: Him BP 4.3.x Rel 15 | |||
| Memory (RAM) | uMCP package (6 GB LPDDR4x) | |||
| Storage (onboard) | uMCP package (128 GB UFS Flash) | |||
| Process Node/Technology | 6nm, 12mm x 14 mm; non-PoP | |||
| Memory/Storage | Dual-channel, non-PoP LPDDR 5 / LPDDR 4X SDRAM, UFS 2.x/3.1, two-lane HS gear 4, SD v3.0, eMMC 5.1 | |||
| Compute DSP | Hexagon DSP with dual HVX and 2K HMX(~3.5 INT8 TOPS) Clock Speed 1.4 GHz | ~6 INT8 TOPS | ~9 INT8 TOPS | |
| Connectivity | WLAN: Wi-Fi6 (802.11ax) & Wi-Fi 6E (6 GHz), FM supported Uplink/Downlink MU-MIMO, 4K QAM, 160 MHz channels (5& 6 GHz) | |||
| Display Technology | Adreno 1075 DPU, On-device Display Resolution: FHD+ (1080 x 2520 pixels) 8L @ 120 fps, 1x DSI D-PHY (4 -lane), DP1.4 SST | |||
| Camera ISP | Qualcomm Spectra™ 570L ISP, Dual Camera: 2x22 MP | 3x22 MP | ||
| Video | Up to 4K60 decode for H.264/H.265/VP; Up to 4K30 encode for H.264/H.265; Support for HDR10 and HDR10+ playback | |||
| Audio | Qualcomm® Noise and Echo Cancellation V10, Integrated low-power VA (more keywords, Command First), Audio ML DSP:LPI, Shared 2 MB, 1.4 GHz | |||
| Interfaces | USB Type-C 3.1, USB 2.0, UFS 2.x/3.1, eMMC 5.1, SD 3.0, 2x PCIe | |||
| Security Features | Hardware Key Manager & ECC, Secure boot, Crypto Engine, Secure key provisioning, Qualcomm® Trusted Execution Environment, Qualcomm® Content Protection (Widevine, Camera Security Framework, Secure User Interface) | |||
| Cellular Modem RF (QCM5430) | 400 MHz bandwidth (mmWave), 100 MHz bandwidth (sub-6 GHz) | |||
| Location (QCM5430) | GPS, GLONASS, NavIC, BeiDou, Galileo, QZSS, and SBAS | |||
| Benchmarks | LP5: Antutu: ~310K-340K | LP5: Antutu: ~350K-400K | LP5: Antutu: ~490K | |
| OS Support | Android, LU, Windows, Linux | |||
| Temp. Range | Tj:-30 to 105 C | |||
Get Support
Help Center
Technical Support
(for cusmtomer)
Qualcomm® RB3 Gen 2 Lite Development Kit (Core Kit)
Package List:
• Development board based on the Qualcomm QCS5430 processor
• 12V wall power supply
• USB Type-C cable
• Micro USB cable
• Mini speakers
• Setup guide
• Pick tool for setting switches
• 12V wall power supply
• USB Type-C cable
• Micro USB cable
• Mini speakers
• Setup guide
• Pick tool for setting switches
$389
Qualcomm® RB3 Gen 2 Lite Development Kit (Vision Kit)
Package List:
• Qualcomm® RB3 Gen 2 Lite Development Kit (Core Kit)
• Mounting bracket for CSI cameras
• High-resolution CSI camera
• Low-resolution CSI camera
• Mounting bracket for CSI cameras
• High-resolution CSI camera
• Low-resolution CSI camera
$589
Qualcomm® RB3 Gen 2 Lite Development Kit:
IMX577 Camera Module
12MP Mipi camera module, FOV：120° （D）110°（H）75°（V）
Package List:
1 x IMX 577 camera module, 1 x FPC
$164
