Qualcomm® Robotics RB1 Platform (Qualcomm® QRB2210)
Dream up and deploy a new generation of everyday robotics and IoT products for the masses without sacrificing features or performance.
The Qualcomm Robotics RB1 platform integrates high-level features, AI solutions, and powerful performance in a unified, cost-effective solution giving OEMs, ODMs, and developers the flexibility to design and create a generation of high-performance everyday robotics and IoT products. The Qualcomm Robotics RB1 combines heterogeneous compute and AI focused performance, communications technologies, and new levels of cost-effectiveness and accessibility for the industry. The platform is optimized for smaller devices and lower power consumption.
This extends to their built-in support for machine vision; support for up to two cameras, providing onboard intelligence to meld this data with other high-fidelity sensors from TDK for applications such as autonomous navigation.
Applications:
Qualcomm® Robotics RB1 Platform Applications
Service Robot
Dash Camera
Smart Display Assistant
Smart Gateway
Industrial Handheld
Qualcomm® Robotics RB1 Platform Highlights
Powerful heterogenous computing
The Qualcomm Robotics RB1 platform is a robust entry-level offering, enabling reliable performance with upgraded features at low power consumption in its tier. Equipped with Cortex A53 CPU architecture and Adreno 702 GPU, this is a cost-effective solution delivering high performance and graphics capabilities.
High performance camera capabilities
Delivers best-in-class image quality and resolution with two concurrent cameras. Multi-frame Noise Reduction for low light capture, image stabilization, forward-looking bad pixel correction, sharp edges, radial de-noising, etc. are key features.
Common software support with Qualcomm® Robotics RB2 platform
The Qualcomm® Robotics RB1 and Qualcomm Robotics RB2 platforms share common software. Developers can decrease development time and reduce costs associated with creating applications across both platforms. It also allows OEMs to address multiple tiers of the market with RB1 and RB2 platforms.
Full development kit for robotics and IoT
Further reduce development time and complexity using a feature packed development kit. The kit includes the robotics-focused development board based on the QRB2210 processor. The platform offers support for Linux and Robot Operating System (ROS) 2, as well as pre-integrated drivers for various cameras, sensors and connectivity.
Power efficient and cost-effective
Designed to support entry tier robots and IoT devices with challenging power and thermal dissipation requirements.
Qualcomm® Robotics RB1 Platform Features
• Customized 64-bit ARM Cortex-A53 quad-core applications processor at up to 2.0 GHz
• Dedicated DSP shared between sensor core and low-power audio subsystem
• Qualcomm® Adreno™ GPU 702 @ 845 MHz, 3D graphics accelerator with 64-bit addressing
• Dual-channel non-PoP high-speed memory
• Qualcomm® Universal Bandwidth Compression (UBWC) with GPU
• Display support: HD+, 720 × 1680 at 60 Hz, 10 bit end-to-end, and up to four hardware layer composition. Features Qualcomm® Low-Power Picture Enhancement and Qualcomm® True Palette Display
• 2x ISP (13 MP + 13 MP or 25 MP) at 30 fps ZSL
• Support for eMMC 5.1, SD 3.0, and USB 3.1 Type-C
• Always-on subsystem with RPM for power management
• Long term support with extended life hardware and software support through 2027
Specifications of the Qualcomm® Robotics RB1 Development Kit
| Component | Qualcomm® Robotics RB1 Development Kit |
| CPU | Customized 64-bit ARM Cortex-A53 quad-core applications processor at up to 2.0 GHz |
| GPU | Qualcomm® Adreno™ GPU 702 @ 845 MHz, 3D graphics accelerator with 64-bit addressing |
| Wi-Fi | 1 × 1 802.11a/b/g/n/ac |
| Bluetooth | Specification Version: Bluetooth® 5.0 |
| Camera | 2x ISP (13 MP + 13 MP or 25 MP) at 30 fps ZSL; Two 4-lane CSIs (4/4 or 4/2/1) D-PHY 1.2 at 2.5 Gbps per lane or C-PHY 1.0 at 10 Gbps (3.42 Gbps/trio) |
| Video | 1080p30 8-bit HEVC (H.265)/H.264 encode and decode; Concurrency: 1080p30 decode + 720p30 encode |
| Security | Secure boot, secure debug, secure key provisioning, TrustZone, Qualcomm ® Trusted Execution Environment, hardware supported KeyStore |
| Memory | Dual-channel non-PoP high-speed memory, LPDDR4X SDRAM designed for 1804 MHz clock (2 × 16 bit) and LPDDR3 SDRAM designed for 933 MHz clock (1 × 32 bit) |
| Part | Part Number(s): QRB2210 |
| Catagory | Class | Document Name |
| Public Documents | - | - |
| Private Documents | Get the Private Documents > | |
Everything You Need to Generate System Image
RB1 SDK Manager provides an end-to-end image generation/downloading solution for developers to work with RB1 devices.
Highlights
• Generate system image on local PC
• Version control of official image releases
• Flash full build into RB1 device
• Designed for developers
System Requirements
• Host OS: Ubuntu Desktop 18.04
• Alternative: Ubuntu 18.04 on Docker
NOTE： Ubuntu under libvirt KVM/QEMU is not supported
What’s in RB1 SDK Manager
• SDK Manager debian package
• README (User guide)
• Dockerfile for generating Ubuntu 18.04 docker image
Release Note for Updated Image:
| Release note for LE image |
| QRB2210.LE.1.0-Post-CS6: 1.Based on Qualcomm release r00017.0 2.Propose based on PVT1.1 96board HW -------------------- QRB2210.LE.1.0-Post-CS5: 1.Based on Qualcomm release r00016.0 2.Propose based on PVT1.1 96board HW -------------------- QRB2210.LE.1.0-Post-CS4: 1.Based on Qualcomm release r00015.0 2.Propose based on PVT1.1 96board HW -------------------- QRB2210.LE.1.0-Post-CS2: 1. Based on Qualcomm release r00013.0 2. Propose based on PVT HW |
| Notes: please refer to Qualcomm official release notes for complete support lists of QC releases |
Release Note for SDK Manager
- Support for RB5 Gen 2
- Support for RB3 Gen2
- Support for C6490
- Support for RB5 LE2.0
- Optimize the product selection interface
- Support for RB5N Non-pop
- Update README_Linux.txt
- Update README_Windows.txt
- Support for RB5 LU2.0
- Support for RB1
- Support for RB2
- Support for RB6 Non-pop
- Enable LE SDK toolchain download
- Commands to download LE releases
- Update README
- Modify flash method
- Update README
- Update README
- Add debug message on flashing
- Minor fixes
- User credential check
- Dynamic image version control
- Enable system image repack
- Enable full build flash on Ubuntu
Get Support
Help Center
Technical Support
(for cusmtomer)

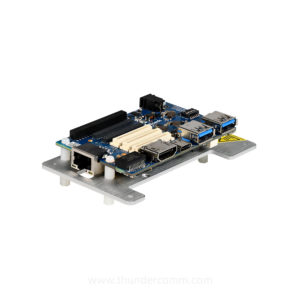

Qualcomm® Robotics RB1 Development Kit (Core Kit)
Package List:
SOM & Interposer + Main IO Board + Antennas + Power Adapter
$199

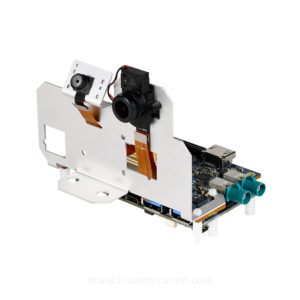

Qualcomm® Robotics RB1 Development Kit (Vision Kit)
Package List:
SOM & Interposer + Main IO Board + Vision Mezzanine Board + Camera + Antennas + Power Adapter
$449

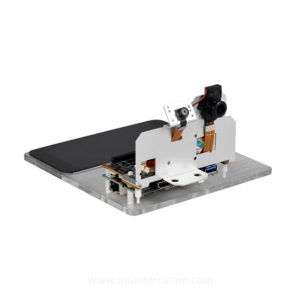

Qualcomm® Robotics RB1 Development Kit (Full Kit)
Package List:
SOM & Interposer + Main IO Board + Vision Mezzanine Board + Display + Camera + Antennas + Power Adapter
$499
Qualcomm® Robotics RB1 Development Kit:
TDK Mezzanine Board
The TDK Mezzanine Board includes all the latest technologies offerings from TDK focused on the Robotics industry. The TDK Mezzanine combines the market leading performance of the ICM-42688-P IMU with the World’s Highest Performing Digital Microphone (T5818) and TDK’s Ultrasonic Time-of-Flight (ToF) range finder (CH-101 and CH-201). These sensors are accompanied by TDK’s Motor Driver (HVC4420F-B1), Barometric Pressure (ICP-10111), and TDK’s newest industrial grade IMU Module, the IIM-46230. The TDK Mezzanine is the perfect complement to the RB5 platform and provides all the sensor data needed to help fast track development of next generation robotics.
Note: TDK Mezzanine Board require RB5 platform since it cannot work alone.
Note: TDK Mezzanine Board require RB5 platform since it cannot work alone.
Package List:
TDK Mezzanine Board + Bracket
$249
