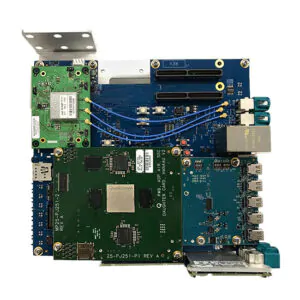

SA8155P Automotive Development Platform
To help automakers bring highly differentiated and customizable in-car experiences to all tiers, the Qualcomm® Snapdragon™ automotive development platform (ADP) based on the Qualcomm® Snapdragon™ SA8155P processor features is integrated with heterogeneous computing, high-performance artificial intelligence (AI) capabilities, and scalability with a unified software framework. It supports higher levels of computing and intelligence needed for advanced capabilities featured in next generation vehicles, including highly intuitive AI experiences for in-car virtual assistance, natural interactions between the vehicle and driver, contextual safety use cases, immersive graphics, multimedia, computer vision, premium audio, advanced wireless technologies, extraordinary camera capabilities, entertainment, and more.
Applications:
The SA8155P Snapdragon™ processor is armed with the best of the proven heterogeneous compute technologies, including the multi-core Qualcomm AI Engine, Qualcomm Spectra Image Signal Processor (ISP), fourth-generation Qualcomm Kryo Central Processing Unit (CPU), Qualcomm Hexagon Processor, sixth-generation Qualcomm Adreno Visual Subsystem, and more. Essentially, these technologies inside the platform are designed to deliver immersive graphics, multimedia, computer vision and artificial intelligence capabilities. The new platform also offer comprehensive software support for Android, LINUX, QNX, Greenhills, and other high-level and real-time operating systems individually or in multiple combinations enabled by industry-leading virtualization SW architecture — providing flexible and scalable software solutions to support engine control unit (ECU) consolidation, and diverse multi-display app rich ecosystems and novel and intuitive experiences.
The Snapdragon SA8155P Automotive Development Platform Offers Many Advantages:
High performance computing with AI is enabling new intuitive vehicle experiences
- New AI personalized experiences- using artificial intelligence and computer vision
- Contextual safety – more computer vision, camera and AI workloads
- Stunning visual & audio - more displays & speakers, and multi-mode machine interfaces using AI
Heterogeneous SoC architecture with virtualization is addressing vehicle domain consolidation
- Convergence - instrument cluster, infotainment, intelligent cameras & driver monitoring
- Multi-OS architecture – Linux, QNX, Android, Integrity
- High concurrency- Advanced Concurrent Operations
- High performance/concurrency-Partitioning algorithms across heterogeneous engines for more work to be done per clock cycle
- Power efficiency-Matching each algorithm to appropriate processing engine to do more at lower power
- Lower cost-Integrated solution, reducing the number of components and minimizing the need for wiring and cooling systems
- Real-time support-Hypervisor support and customized engines to meet latency-critical requirements
Scalability with unified software framework is delivering rich in-vehicle experiences to all tiers
- Scalable, module architecture – Addressing all tiers
- Unified software framework – with highly differentiated features
| Feature | Description |
|
CPU |
+ Custom 64-bit Kryo octa-core CPU + 7nm process for faster peak performance |
|
GPU |
+ Adreno 640 GPU + 1.1 TFLOPS OpenGL ES 3.1, Vulcan Qualcomm® FlexRenderTM Technology, Binning Architecture, HW Virtualization, Context Separation |
|
DSP |
+ Qualcomm® Hexagon™ 696 DSP with Hexagon Vector eXtensions + Large SIMD extensions with 1024 bit SIMD * 4 vector slot VLIW + Power optimized solution for Vision and neural processing based ADAS features |
|
Display |
+ Qualcomm Spectra™ ISP 380 for image recognition, and face detection + Up to 4K resolution supporting multiple touchscreen displays + 1x DP Native DP out from SoC + 2x DP DSI to DP bridge |
|
Memory & Storage |
+ 2 × 32 LPDDR4X with ECC + 1x UFS3.0 gear4 2 Lane |
|
Cameras and sensors |
+ Support for up to 8 simultaneous camera sensor inputs |
|
Security |
+ Qualcomm® SecureMSM™ foundation + Qualcomm® Snapdragon™ Smart Protect + TrustZone, DRM, Deep learning based |
|
Connectivity |
+ Fully integrated chipset solution with QCA6574 supporting 2-stream 11ac Wi-Fi |
|
Multimedia |
+ SA8155P audio and video codecs in hardware including HEVC, VP9 DVR capability with H.265 encode + 4K Encode and Decode + Multiple 4K displays, up to 3 simultaneous displays |
Specifications and features are subject to change without notice. Qualcomm Adreno, Qualcomm AI Engine, Qualcomm Hexagon, Qualcomm Kryo, Qualcomm Snapdragon, and Qualcomm Spectra are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
| Feature | Description | Detail |
|
Size |
7.5 x 7.0 x 2.0 [Inch] | Length width height |
|
Power |
+6 V to +20V +12 VDC Typical |
Protection: Over / Under Voltage, Over Current, Reverse Polarity, Load Dump |
|
SoC |
SA8155P SoC | 23 mm × 23 mm × 2.42 mm FCBGA989 package |
|
PMIC |
2xPMMXXXX AU | - |
|
Memory |
LPDDR4X:2x4GByte | Soldered down on SoC Card JEDEC STD Footprint. |
|
Storage |
UFS: 128 GBytes SD: uSD Connector SIM: Dual SIM Socket for UIM |
SIM: Dual SIM Socket for UIM |
|
USB |
1x USB2.0, 1x USB3.1 | All USB interfaces brought out to USB Type A connectors |
|
PCIe |
1x PCIe Gen3 x1 lane, 1x PCIe Gen3 x2 lane, |
All PCIe lanes pinned out to a custom board-to-board connector. One PCIe Gen3 x 1 lane routed to Wi-Fi module. |
|
Video output |
2x DSI x 4 lane, 1x DP | All DSI ports have bridge-chip to DP |
|
Video input |
4x CSI x 4 lane | Supports 8 cameras via dual GMSL to CSI Deserializer |
|
Audio |
6x Class D Amplifier Analog OUT 4x MIC IN 3x LINE IN 2x A2B |
NXP Mercury |
|
Broadcast radio tuner |
AM / FM | NXP Mercury |
|
Wired networking |
1x Gigabit Ethernet w/EAVB | RGMII w/ PHY |
|
Wireless networking |
Wi-Fi | QCA6574 or QCA6595 or QCA6696 |
|
Sensors |
Sensors | - |
