Snapdragon™ 8 Gen 1 Mobile Hardware Development Kit (8450 HDK)
The Snapdragon 8 Gen 1 mobile platform is engineered with industry-leading innovations in AI, gaming, photography, and the many more premium experiences customers deserve. Featuring Qualcomm’s fastest-yet 7th gen Qualcomm® Artificial Intelligence (AI) Engine, the Snapdragon 8 Gen 1 delivers a total of 27 TOPS performance, operating up to 4x faster than the predecessor. The always-on 3rd Gen Qualcomm™Sensing Hub is supported with the world’s first always-on ISP.
The Qualcomm® Snapdragon 8 Gen 1 Mobile Hardware Development Kit provides an open-frame solution for technology companies to integrate and innovate devices based on the Snapdragon 8 Gen 1 Mobile Platform. The Snapdragon 8 Gen 1 Mobile HDK is a feature-rich Android development platform that is suited for Android application developers, consumer manufacturers, hardware component vendors, camera vendors, and flash chip vendors to evaluate, optimize, test, and deploy applications that can utilize the Snapdragon 8 Gen 1 mobile platform technology.
The Snapdragon 8 Gen 1 HDK platform is designed to provide original equipment manufacturers (OEMs), hardware/software vendors, developers, and engineers with next-generation software technology and tools to accelerate the development and testing of devices.
Applications:
Snapdragon™ 8 Gen 1 Mobile Hardware Development Kit Applications
● Android mobile application development
● Platform evaluation and benchmarking
● HW component or peripheral testing
● Proof of concept testing
Snapdragon™ 8 Gen 1 Mobile Hardware Development Kit Highlights
● Powered by the Qualcomm® Snapdragon™ SM4350P SoC
● Numerous I/O and connectivity options
● Accessory peripherals available
● 6x 4-Lane MIPI CSI camera ports (2 require optional Camera Card)
● 2x 4-Lane MIPI DSI display ports
● 1x USB3.1 Gen 2 (10.0 Gbps) Type-C with DisplayPort video out
● Wi-Fi 6 – 802.11ax 2×2 MU-MIMO Wi-Fi
● Android™ 12
| Specification | Description |
| Processors | Qualcomm® Snapdragon™ SM8450P – 64-bit octa-core Kryo™ 780 Processor |
| ·Three high-performance Gold cores at 2.496 GHz | |
| ·One high-performance Gold Prime core at 2.995 GHz | |
| ·Four low-power Kryo cores at 1.785 GHz | |
| Qualcomm® Adreno™730 GPU | |
| Qualcomm® Hexagon™ Tensor Processor (HTP) with Hexagon Vector eXtensions (HVX) and Hexagon Matrix eXtensions (HMX) | |
| Qualcomm® Spectra™ 680 Image Sensor Processor | |
| Memory/Storage | 12GB up to 3200MHz PoP RAM |
| 256GB UFS 3.0 Flash | |
| Wireless | Qualcomm® FastConnect™ 6900 System with WCN685x, 802.11a/b/g/n/ac/ax 2.4/5.0 GHz |
| Support HS and backward compatible with EDR | |
| On-board 2xPCB trace antennas | |
| Audio | Qualcomm® WCD9385 audio codec on-board |
| 1x Headset headphone output | |
| 1x loud-speaker output | |
| 1x Earpiece output | |
| 4x Digital MIC input | |
| Audio Expansion Headers | |
| ·2x Analog MIC input | |
| ·1 x I2S | |
| Video | Adreno™ VPU 665 fifth generation UHD Video Processing Unit |
| Video decode up to 4K240 or 8K60 | |
| Video encode up to 4K120 or 8K30 | |
| Concurrent 4K60 decode and 4K30 encode for wireless display | |
| New computer vision processor (CVP) for object detection and tracking | |
| Display Interfaces | 2x 4-Lane MIPI DSI DPHY or 2x 3-Trio MIPI DSI CPHY via 2x 60-pin High Speed Display Connector |
| Optional Display/Expansion board mates to DSI connectors | |
| HDMI 2.0 via DSI -> HDMI bridge chip (on-board), up to 4K @ 60Hz | |
| DisplayPort 1.4 over USB3.1 Type-C | |
| Camera Interfaces | 4 x 4-Lane MIPI CSI DPHY or 4 x 3-Trio MIPI CSI CPHY, 1 x 160-pin Camera Connector for CSI0, CSI1, CSI2 and CSI3 |
| 1 x 4-Lane/1 x 2-Lane MIPI CSI DPHY or 4 x 3-Trio MIPI CSI CPHY, 1 x 60-pin Camera Connector for CSI4, CSI5 on expansion card | |
| D-PHY v1.2 2.5 Gbps per lane C-PHY v1.2 10.26 Gbps per T | |
| Power Input | 12V/5A input from wall adapter (included), or battery (not included) |
| Power Management | Qualcomm® Power and battery management (PMK8450+ PM8450 + PM8350 + PM8350C + PM8350B + PM8010 + PMR735A) |
| OS Support | Android™ 12 |
| Size | 100 mm x 85 mm |
| I/O | 1x USB3.1 Gen 2 (10.0 Gbps) Type-C with DisplayPort video out |
| 1x PCIe v3 2-lane to M.2 socket | |
| 1x microSD/UFS Card Socket | |
| 2x USB 3.0 Type-A host via on-board hub | |
| 1x USB micro-B debug UART | |
| Sensor expansion headers | |
| Low speed GPIO expansion header |
* Compared to previous generations
Qualcomm Hexagon, Qualcomm Adreno, Qualcomm Spectra and Qualcomm Kryo are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
Get Support
Help Center
Technical Support
(for cusmtomer)
Snapdragon™ 8 Gen 1 Mobile Hardware Development Kit (8450 HDK) Main Board
The Snapdragon 8 Gen 1 mobile platform is engineered with industry-leading innovations in AI, gaming, photography, and the many more premium experiences customers deserve. Featuring Qualcomm’s fastest-yet 7th gen Qualcomm® Artificial Intelligence (AI) Engine, the Snapdragon 8 Gen 1 delivers a total of 27 TOPS performance, operating up to 4x faster than the predecessor. The always-on 3rd Gen Qualcomm™Sensing Hub is supported with the world’s first always-on ISP.
Lead Time:Expected to ship within 2 months after payment complete.
$2130

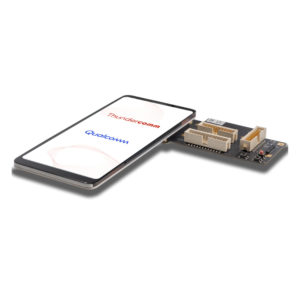

Snapdragon™ 8 Gen 1 Mobile HDK Display Card
The display card consists of an FHD+ LCD capacitive touch display and expansion card supporting extended audio connectors, sensor connectors and secondary camera connector.
NOTE: A HDMI type A connector enables the HDK8450 development platform to connect to an external HDMI monitor/ television via an HDMI cable. The onboard MIPI DSI to HDMI2.0 bridge IC features a resolution up to 4K60Hz with a default output of 3980x2060.
$549
