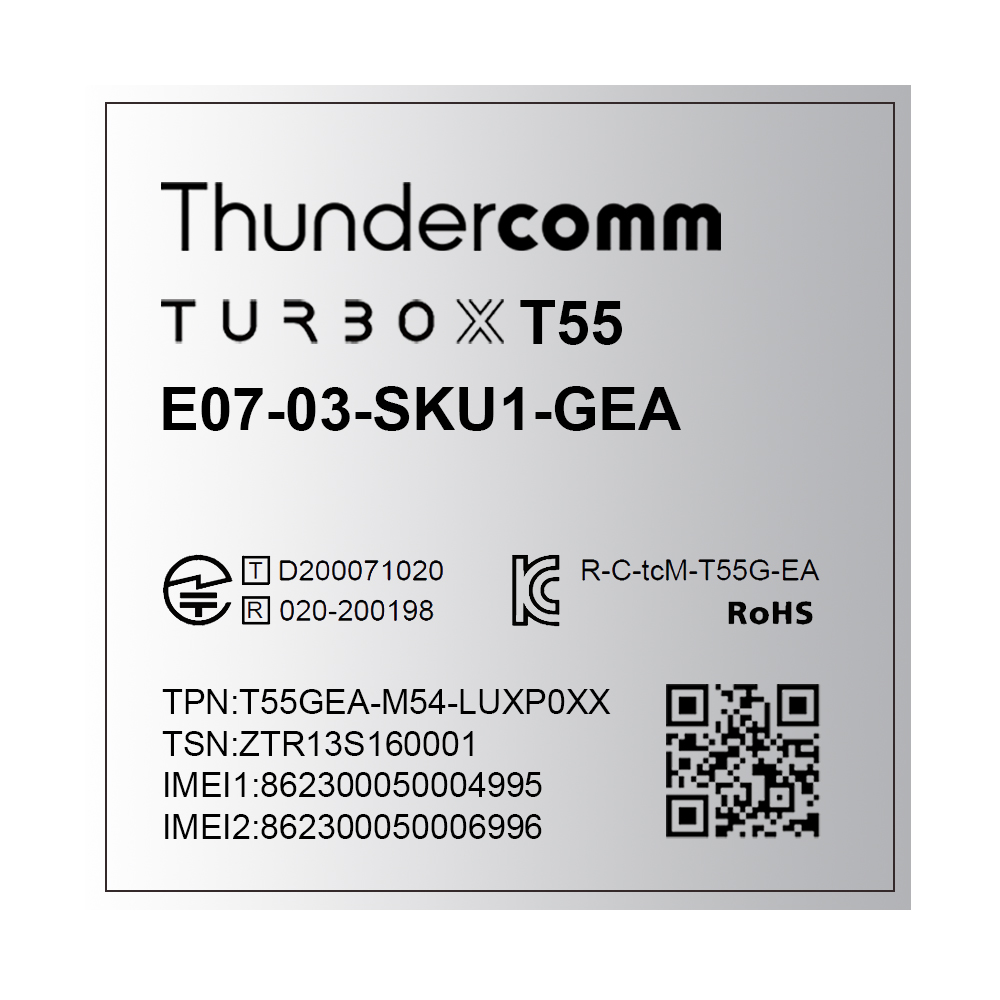

T55G-EA 5G SOM

(For EMEA and APAC regions)

Documents

Designed to deliver breakthrough wireless performance

The TurboX T55 series SOM (System On Module）integrates Qualcomm’s Snapdragon X55 5G modem-RF system, supports both 5G Sub-6 GHz and mmWave bands, as well SA and NSA mode which makes it backwards compatible with 4G/3G network. The integrated GNSS receiver, supports GPS/GLONASS/BeiDou/Galileo/QZSS with dual L1 and L5 bands, greatly simplifies product design and provides quicker, more accurate and more reliable positioning capability. With rich variants of LGA and M.2 form factor, T55 series SOM can help OEMs easily bring blazing fast connected devices to global market.

Product Overview

Thundercomm TurboX T55 5G Solution

T55G-EA 5G SOM Applications

Industrial Control

Automated Guided Vehicle

Webcast

Gateway

AR/VR

T55G-EA 5G SOM Features

Integrated 5G to 3G support

High speed interface drivers for multi-OS:

PCIe, USB3.1 or 1 Gb Ethernet drivers for Android/Windows/Linux

5G SA/NSA operation modes

T55 5G SOM

Global 5G spectrum bands supported

5G Peek Download Speed: 3Gbps

Download MIMO: 4×4 MIMO

LTE & Wi-Fi shared antenna

Specifications

T55G-EA Specifications

Specification Category T55G-EA
SDX55 Chipset CPU Arm Cortex-A7 up to 1.5 GHz
DSP Qualcomm® Hexagon™ DSP processor at up to 1.5 GHz
Power Management PMX55
RF Transceiver SDR865
Memory DRAM/NAND 4Gb DDR4 + 4Gb NAND
Air Interface 5G NR Sub-6GHz:
SA:n28
SA&NSA:n41,n77,n78,n79
LTE(Cat20 UL/DL) B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32/B34/B38/B39/B40/B41/B42
WCDMA B1/B3/B5/B8/B19
GNSS GPS/Beidou/GLONASS/Galileo/QZSS, L1/L5 bands supported
Data Rate Peak Download Speed 5G NR+LTE 3CC: 3Gbps DL 4×4 MIMO
Peak Upload Speed 5G NR: 900Mbps
Connectivity and Peripheral Interface BLSP 4x BLSP supports UART, SPI, and I2C
Antenna Connector 8x sub-6GHz, 1xGNSS
UIM 2x USIM
PCI express 1x Gen3 2lane
I2S 2x I2S/PCM
USB 1x USB 3.1

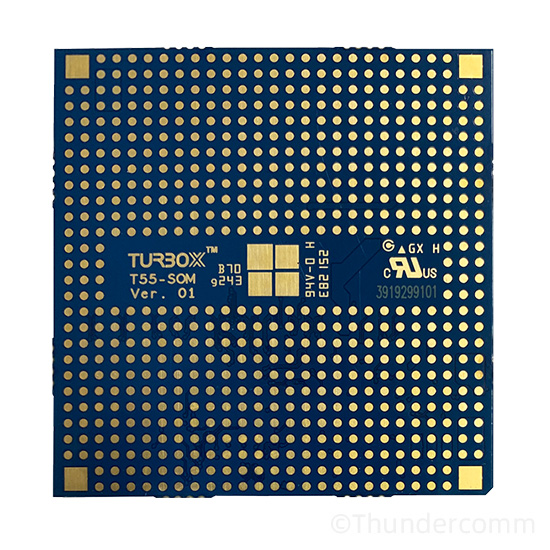

Form Factor LGA LGA Package: 42.5*42*2.6mm
Certification Regulatory&Carrier KC/JATE/TELEC/CE#/LGU+*/KT/SKT#/NTT DOCOMO#/Softbank#/KDDI#
Weight 11.05 ± 0.2g
Power Voltage Range 3.0~4.35V, Typ. 3.8V
Temperature Range Operation -30°C ~ +75°C
Storage -40°C ~ +85°C
Software Operating System Linux

* Ongoing, # Planning
