T62G-EA SOM

(For EMEA and APAC regions)

Documents

The TurboX T62 Series cellular module has integrated Qualcomm® Snapdragon™ SDX62 5G Modem-RF system and can support both 5G Sub-6 GHz and SA/NSA mode, making it backwards compatible with 4G/3G network.

Integrating 4 nm process of the SDX62 chipset, T62 series supports 3GPP Release 16 with superior performance and power efficiency. It can help ODM/OEM easily bring blazing fast connected devices to global market and perfectly apply to CPE/MIFI/Industrial routers, mission-critical applications (ambulance, security, robotics, AR/VR, livestreaming etc.) and remote healthtech (surgery, diagnostic, assistance, etc.) devices.

Overview

T62G-EA SOM Applications

CPE/Router

Industrial Control

Automated Guided Vehicle

Webcast

AR / VR

Remote Healthtech

T62G-EA SOM Features

Integrated 5G to 3G Support

High speed interface drivers for multi-OS

PCIe,USB 3.1 or Ethernet drivers for Android/Windows/Linux

5G SA/NSA operation modes

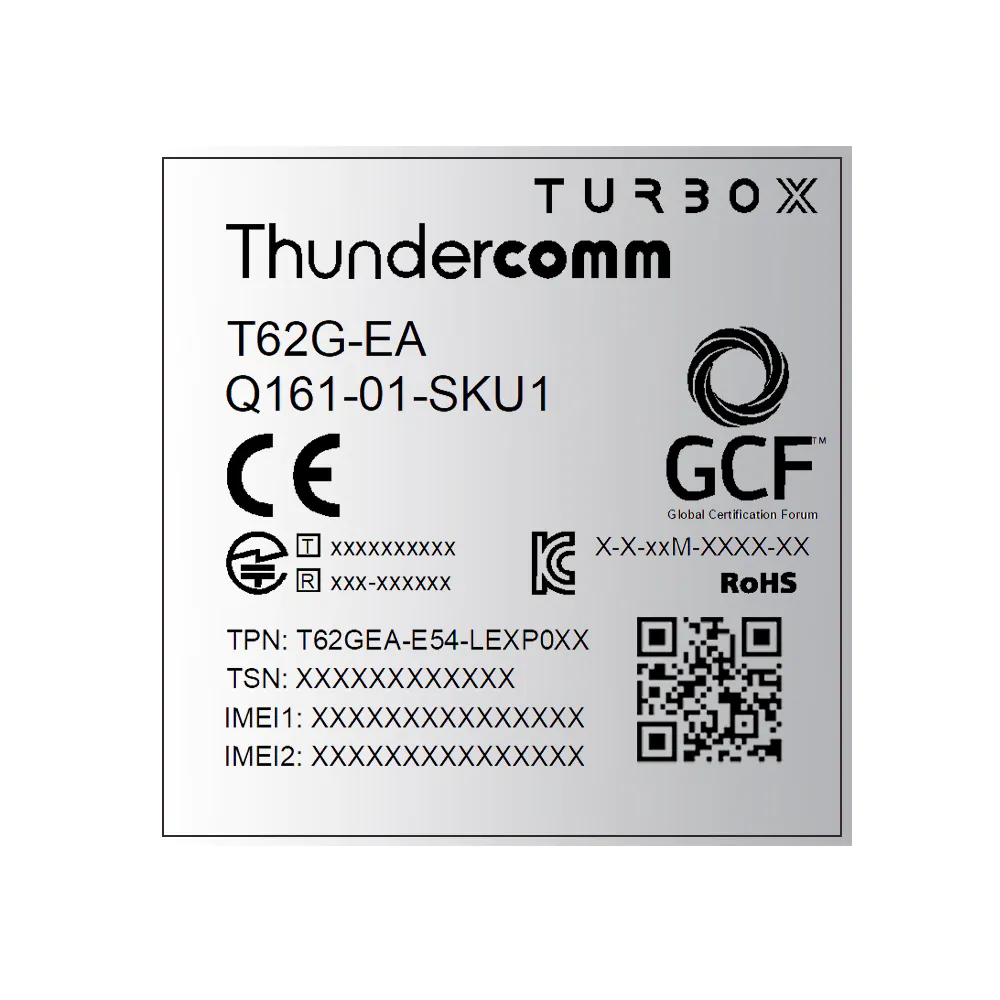

T62G-EA SOM

Global 5G spectrum bands supported

5G Peak Download Speed: 3.5Gbps

Download MIMO: 4 x 4 MIMO

OpenCPU with Comprehensive SDK

Specifications

Specification Category T62G-EA
SDX62 Chipset CPU Arm Cortex-A7 up to 1.5 GHz
DSP Qualcomm® Hexagon™ DSP processor at up to 1.5 GHz
Power Management PMX65
RF Transceiver SDR735
Memory DRAM/NAND 4Gb DDR4 + 4Gb NAND
Air Interface 5G NR Sub-6GHz: n1,n3, n5, n7,n8,n20,n28,n38,n40,n41, n77, n78, n79
LTE B1/B3/B5/B7/B8/B18/B19/B20/B26/B28A/B28B/B32/B38/B40/B41/B42/B43
WCDMA B1/B5/B6/B8/B9/B19
Data Rate Peak Download Speed 5G NR: 3.5Gbps DL 4×4 MIMO
Peak Upload Speed 5G NR: 1.1Gbps 2×2 MIMO
Connectivity and Peripheral Interface BLSP 4xBLSP supports UART, SPI, and I2S
Antenna Connector 8x sub-6GHz
UIM 2x USIM
PCI express 1x Gen3 2-lane
I2S 2x I2S/PCM
USB 1x USB 3.1
Form Factor LGA LGA Package: 42.5mm x 45.5mm x2.6mm
Certification Regulatory&Carrier KC/KT/LGU+/CE/Deutsche Telekom/SKT*/JATE*/TELEC*/GCF*/KDDI*/Softbank*/NTT DOCOMO*
Weight 11.05 ± 0.2g (TBD)
Power Voltage Range 3.0~4.35V, Typ. 3.8V
Temperature Range Operation -30°C ~ +75°C
Storage -40°C ~ +85°C
Software OS Support Linux, can work with Windows/LU/Android

” Planning

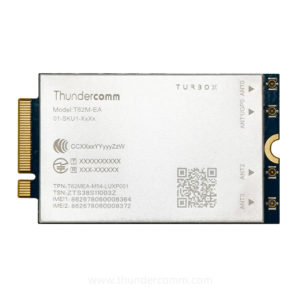

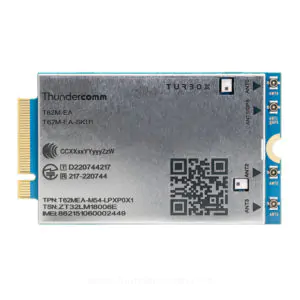

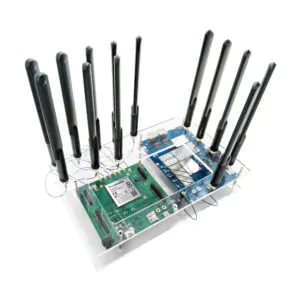

Related products
