T62G-EA Development Kit
(For EMEA and APAC regions)
The TurboX T62G-EA Development Kit is designed based on the 5G cellular module, T62G-EA.
The TurboX T62 Series Cellular Modules have integrated Qualcomm® Snapdragon™ SDX62 5G Modem-RF system and can support both 5G Sub-6 GHz and SA/NSA mode, making it backwards compatible with 4G/3G network.
Integrating 4 nm process of the SDX62 chipset, T62 series supports 3GPP Release 16 with superior performance and power efficiency. It can help ODM/OEM easily bring blazing fast connected devices to global market and perfectly apply to CPE/MIFI/Industrial routers, mission-critical applications (ambulance, security, robotics, AR/VR, livestreaming etc.) and remote healthtech (surgery, diagnostic, assistance, etc.) devices.
Applications:
TurboX T62G-EA Dev Kit Applications
CPE/Router
Industrial Control
Automated Guided Vehicle
Webcast
VR/AR
Remote Healthtech
TurboX T62G-EA Dev Kit Highlights
• Integrated 5G to 3G Support
• High speed interface drivers for multi-OS
- PCIe, USB 3.1 or Ethernet drivers for Android/Windows/Linux
• 5G SA/NSA operation modes
• Global 5G spectrum bands supported
• 5G Peak Download Speed: 3.5Gbps
- Download MIMO: 4 x 4 MIMO
• OpenCPU with Comprehensive SDK
| Specification | Category | T62G-EA |
| SDX62 Chipset | CPU | Arm Cortex-A7 up to 1.8 GHz |
| DSP | Qualcomm® Hexagon™ DSP processor at up to 1.5 GHz | |
| Power Management | PMX65 | |
| RF Transceiver | SDR735 | |
| Memory | DRAM/NAND | 4Gb DDR4 + 4Gb NAND |
| Air Interface | 5G NR | Sub-6GHz: n1,n3, n5, n7,n8,n20,n28,n38,n40,n41, n77, n78, n79 |
| LTE | B1/B3/B5/B7/B8/B18/B19/B20/B26/B28A/B28B/B32/B38/B40/B41/B42/B43 | |
| WCDMA | B1/B5/B6/B8/B9/B19 | |
| Data Rate | Peak Download Speed | 5G NR: 3.5Gbps DL 4x4 MIMO |
| Peak Upload Speed | 5G NR: 1.1Gbps 2x2 MIMO | |
| Connectivity and Peripheral Interface | BLSP | 4xBLSP supports UART, SPI, and I2S |
| Antenna Connector | 8x sub-6GHz | |
| UIM | 2x USIM | |
| PCI express | 1x Gen3 2-lane | |
| I2S | 2x I2S/PCM | |
| USB | 1x USB 3.1 | |
| Form Factor | LGA | LGA Package: 42.5mm x 45.5mm x2.6mm |
| Certification | Regulatory&Carrier | KC/KT/LGU+/CE/Deutsche Telekom/SKT*/JATE*/TELEC*/GCF*/KDDI*/Softbank*/NTT DOCOMO* |
| Weight | 11.05 ± 0.2g (TBD) | |
| Power | Voltage Range | 3.0~4.35V, Typ. 3.8V |
| Temperature Range | Operation | -30°C ~ +75°C |
| Storage | -40°C ~ +85°C | |
| Software | Operating System | Linux, can work with Windows/Ubuntu/Android |
| Type | Category | Document Name | Update Date |
| Public Documents | Product Brief | [tc-q2-1110-en]_TurboX T62G-EA Cellular Module_Product Brief_V1.0.pdf | - |
| Private Documents | Get the Private Documents > | ||
Get Support
Help Center
Technical Support
(for cusmtomer)
TurboX T62G-EA Development Kit (Basic)
Package List:

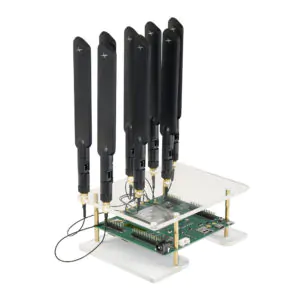

IO Board with T62G-EA Cellular Module, Cellular Antenna x 8 With Bracket
Lead Time:Shipping within 2 weeks after payment.
$799
TurboX T62G-EA Development Kit (Medium)
Package List:
IO Board with T62G-EA Cellular Module, WCN6856 M.2 Wi-Fi module, Cellular Antenna x 8, Wi-Fi Antenna x 3 With Bracket
$999
TurboX T62G-EA Development Kit (Advanced)
Package List:
IO Board with T62G-EA Cellular Module, IPQ5018 Board, Cellular Antenna x 8, Wi-Fi Antenna x 5 With Bracket
$1299
