T75 Series Cellular Modules

Documents
The Thundercomm TurboX T75 Series Cellular Modules feature an integrated Qualcomm® Snapdragon®  SDX75 5G Modem-RF system and can support both 5G NR Sub-6 SA/NSA and mmWave mode, making it backwards compatible with 4G/3G network.
Integrating advanced 4nm process of the SDX75 chipset, T75 series supports 3GPP Release 17 with superior performance and power efficiency. It can help ODM/OEM easily bring blazing fast connected devices to global market and perfectly apply to CPE/MiFi/Industrial routers with multiple high-speed PCIe interfaces and 10Gbps USXGMII interfaces for Ethernet. It is also applicable to mission-critical applications (ambulances, security, robotics, AR/VR, livestreaming, etc.) and remote health technologies (surgery, diagnostics, assistance, etc.).

Overview

TurboX T75 Series Cellular Modules Applications

CPE/Router

Industrial Control

Automated Guided Vehicle

Webcast

AR/VR

Remote Healthtech

TurboX T75 Series Cellular Modules Features

Integrated 5G to 3G support

High speed interface drivers for multi-OS

PCIe, USB 3.1 or Ethernet drivers for Android/Windows/Linux

5G NR Sub-6 SA/NSA and mmWave mode

T75 Series Cellular Modules

Global 5G spectrum bands supported

5G peak download speed:
6Gbps DL 4×4 (Sub-6 only)/
10Gbps (Sub-6 + mmWave)

Download MIMO: 4 x 4 MIMO

OpenWRT with comprehensive SDK

TurboX T75 Series Cellular Modules Specifications

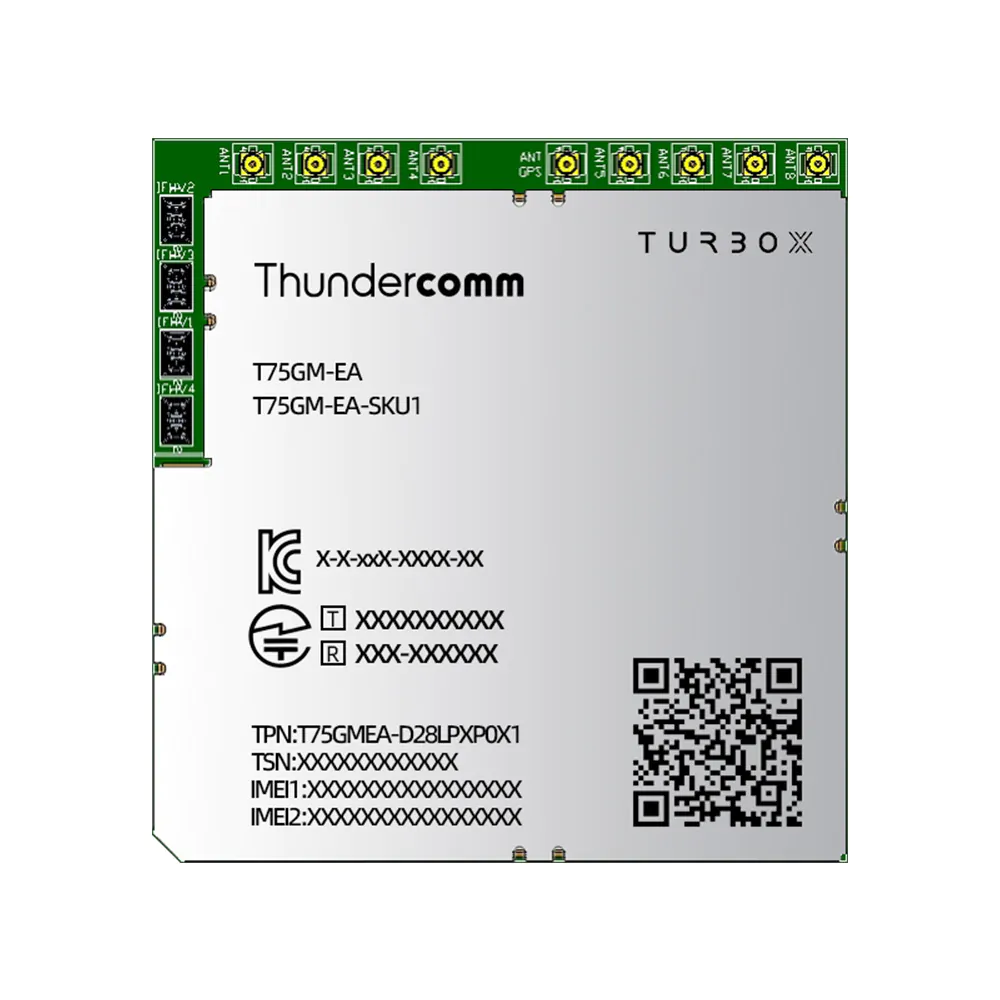

Category T75G-EA T75GM-EA
SDX75 Chipset CPU Quad Arm Cortex-A55 up to 2.2 GHz
DSP Qualcomm® Hexagon™ DSP processor at up to 1.6 GHz (Turbo)
Power Management PMX75/PMK75
RF Transceiver SDR875
Memory DRAM/NAND 4GB/8GB eMMC + 2GB LPDDR5X
Air Interface 5G NR (3GPP R17) Sub-6: n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n75/n76/n77/n78/n79/n91/n92/n93/n94
mmWave: Not supported mmWave: n257/n258/n259/n260/n261
LTE (Cat18 UL/Cat 20 DL) B1/B3/B5/B7/B8/B18/B19/B20/B26/B28A/B28B/B32/B38/B40/B41/B42/B43/B48/B68
WCDMA B1/B5/B6/B8/B19
GNSS GPS/Beidou/GLONASS/Galileo/QZSS, L1/L2/L5 bands supported (optional)
Data Rate Peak Download Speed 6Gbps DL 4×4 (Sub-6 only) 10Gbps (Sub-6+mmW)
Peak Upload Speed 1Gbps UL 2×2 (Sub-6 only) 3.38Gbps (Sub-6+mmW)
Connectivity and Peripheral Interface QUP 9x QUP, supporting UART, SPI, and I2C
Antenna Connector 8x Sub-6 (optional)
1x GNSS (optional)		 4x mmWave (PC1/PC3)
8x Sub-6 (optional)
1x GNSS (optional)
UIM 2x USIM
PCI express 1x Gen4 1-lane + 1x Gen3 2-lane + 1x Gen3 1-lane
I2S/PCM 2x I2S/PCM
USB 1x USB 2.0/1x USB 3.1 Gen 2
Ethernet 2x USXGMII 10G
Others EBI2 for LCD display

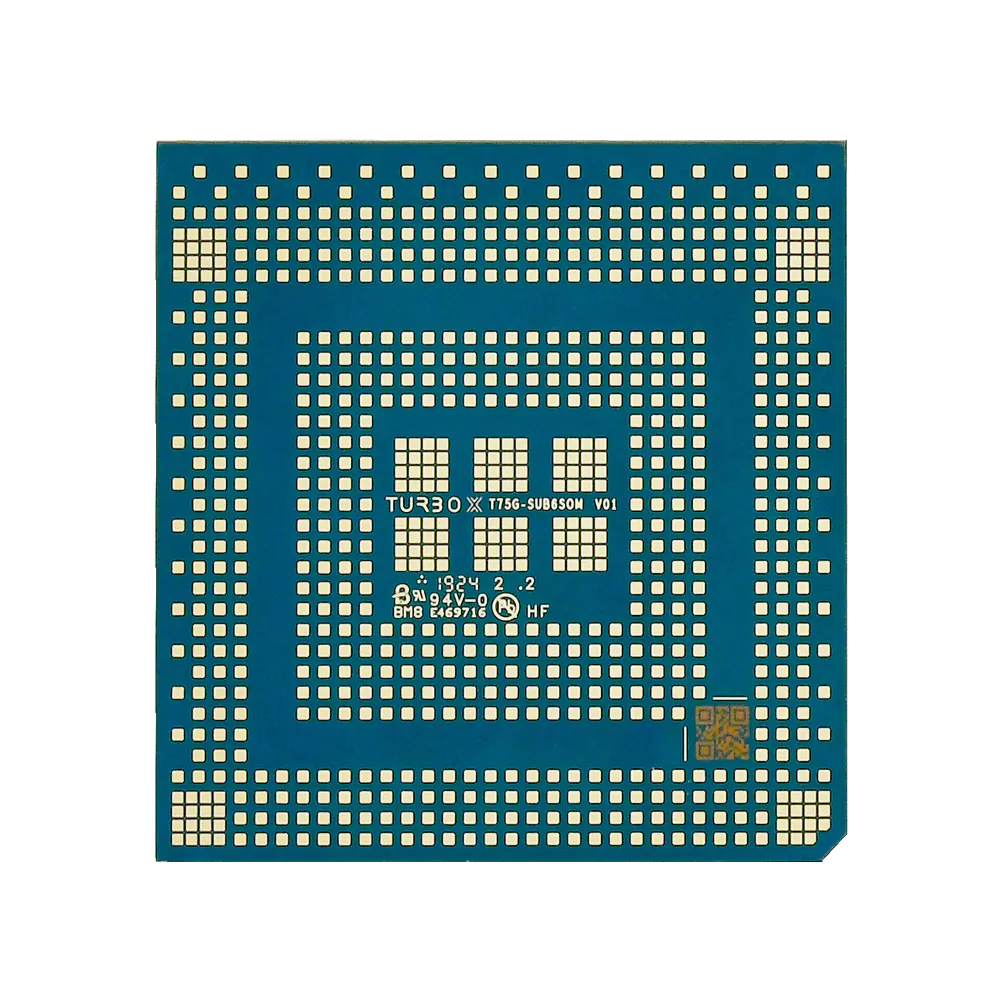

Form Factor LGA 50mm x 52mm x 3.05mm
Power Voltage Range 3.3~4.35V, Typ. 3.8v
Temperature Range Operation -30°C to +75°C
Extended/Storage -40°C to +85°C
Certification KC*/SKT*/KT*/LGU+*/CE*/Deutsche Telekom*/JATE*/TELEC*/KDDI*/Softbank*/NTT DOCOMO*
OS Support Operating System OpenWRT, capable of working with Windows, Ubuntu, Android, etc.
Open CPU Equipped with a comprehensive SDK for OpenWRT

*: Planning
