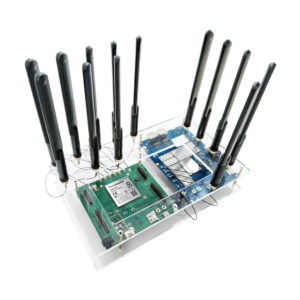

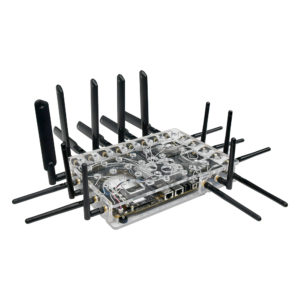

T75 Series Development Kit

The Thundercomm TurboX T75 Series is a flagship 5G connectivity solution built on the Qualcomm® Snapdragon® SDX75 5G Modem-RF system, combining 4nm process technology and 3GPP Release 17 compliance to deliver unmatched performance, power efficiency. It supports 5G NR Sub-6 GHz SA/NSA and mmWave modes (optional), with backward compatibility for 4G/3G networks, ensuring seamless transitions across legacy and next-gen infrastructures.

Engineered for high-bandwidth industrial and mission-critical applications, the T75 integrates multiple high-speed PCIe interfaces and 10Gbps USXGMII Ethernet to power advanced CPE/MiFi/industrial routers, while its ultra-low latency and reliability enable real-time use cases like robotics, AR/VR streaming, and remote medical technologies (surgery, diagnostics). With global spectrum support, tri-band Wi-Fi 7 readiness, and developer-friendly OpenWRT/SDK tools, the T75 accelerates the deployment of smart infrastructure, edge computing, and IoT ecosystems, redefining connectivity for the 5G era.

Applications:

TurboX T75 Series Development Kit Applications

CPE / Router

Industrial Control

Automated Guided Vehicle

Webcast

AR / VR

Remote Healthtech

TurboX T75 Series Development Kit Key Features

• 5G NR Sub-6GHz & mmWave (Optional).
• Wi-Fi 7 Tri-Band (2.4G/5G/6G) 4x4.
• 8x Sub-6GHz + 4x mmWave Antenna Ports.
• Global 5G Spectrum Support.
• 3GPP Release 17 TSN Features.
• OpenWRT with Comprehensive SDK.

TurboX T75 Series Development Kit

Specification T75GM-EA

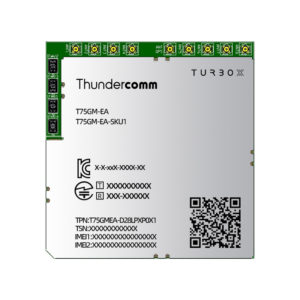

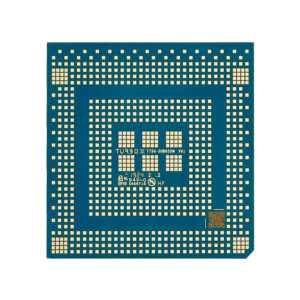

SOM Platform Thundercomm TurboX T75GM-EA
Antenna 4 or 2 x mmWave (PC1)
8x Sub-6; 1x GNSS
12x Wi-Fi (4x Wi-Fi 2.4G, 4x Wi-Fi 5G, 4x Wi-Fi 6G)
Ethernet 2x USXGMII 10Gbps
Wi-Fi WLAN 802.11a/b/g/n/ac/ax/be 2.4/5/6GHz 4x4 MIMO
1x Wi-Fi 2.4GHz (M.2 form factor)
1x Wi-Fi 5GHz (in M.2 form factor)
1x Wi-Fi 6GHz (in M.2 form factor)
USB 1x USB 2.0 Micro B (for debug only)
1x USB 3.0 Type-C (Gen2)
SIM 2x UIM
Buttons Power on
Force USB boot
Reset
Expansion Interfaces 9x BLSP, supporting UART, SPI, and I2C
Power Source 12V/10A, DC Plug 5.5mm/2.5mm
Dimensions 264mm x 181mm x 69.7mm
LED 4x LED Indicators (T.B.D.)
Audio T.B.D.
Fan T.B.D.
SLIC T.B.D.
Catagory Class Type Document Name
Public Documents SOM Product Brief TurboX_T75G(M)-EA_SOM_Product_Brief.pdf
Dev Kit Quick Start Guide -
Private Documents Get the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

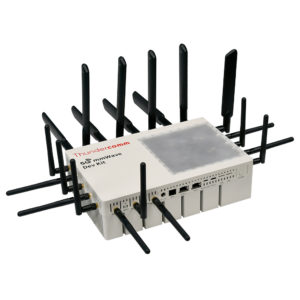

T75GM-EA Development Kit
mmWave + Sub-6GHz (For EMEA and APAC regions)
T75G-EA Development Kit
Sub-6GHz (For EMEA and APAC regions)

TurboX T75 Series Development Kit
