Qualcomm® RB3 Gen 2 Lite 开发套件
专为高性能计算、高易用性而设计的物联网开发套件
Qualcomm® RB3 Gen 2 Lite 开发套件为拥有先进的功能和强大的性能,包括强大的AI运算和计算机图形处理能力,可轻松创造涵盖机器人、工业和自动化等场景的广泛物联网解决方案。
Qualcomm® RB3 Gen 2 Lite 基于 Qualcomm® QCM5430/QCS5430 处理器。该处理器旨在为物联网产品提供卓越的功能和性能,特别是针对机器人、工业手持设备 (IHH)、智慧零售设备、智能相机和无人机应用。这包括对 Wi-Fi 6E 的支持,以实现无处不在的覆盖、统一的软件堆栈、强大的 AI 以及跨生态系统的扩展接口。
应用领域:
Qualcomm® QCM/QCS5430 平台具有高级功能和灵活性,它配备了 Wi-Fi 6E,可实现数千兆位的速度、无缝连接、强大的异构计算和边缘 AI 驱动的多摄像头支持。可在预设功能包之间进行选择,或根据您当前的产品需求定制,也可等待在未来通过软件升级 OTA,以解锁更高的性能。
Qualcomm® RB3 Gen 2 Lite 包括开发套件和软件,开发人员可以选择最能满足其需求的功能包,并设计需要高级性能的 IoT 产品。该平台包括 SDK,使开发人员能够轻松使用和集成应用程序和服务。硬件开发套件还符合 96Boards 开放式硬件规范,以支持从 Vision Mezzanine 开始的一系列夹层板扩展。该平台包括 Qualcomm® Spectra™ ISP 570L 图像处理引擎,可提供终极摄影和摄像体验,并在 Vision Kit 上配备了主摄像头和跟踪摄像头。它可以连接并处理其他摄像机的输出,例如立体、深度和飞行时间 (ToF)。Qualcomm® Adreno™ 633 VPU 提供高质量的超高清视频编码和解码,而 Adreno 1075 DPU 支持设备端和外部超高清显示。
Qualcomm® RB3 Gen 2 Lite 支持多千兆位 Wi-Fi 6E 可实现超快的无线连接和低延迟,我们的 Wi-Fi 6E 产品利用高通® 4K 正交幅度调制 (QAM) 等高级功能,支持高速 160 MHz 信道,实现每秒数千兆位的速度,具有出色的稳定性和一致的体验。该解决方案采用高通® Kryo™ 670 CPU 和高通® Hexagon™ 处理器,采用融合式 AI 加速器架构,可提供强大的连接和计算性能,专为工业和商业物联网应用而构建,例如随身记录仪、无人机、行车记录仪、边缘计算盒子、监控摄像头、工业电脑、协作系统、车辆网关、机器人、工业扫描仪等。
Qualcomm® RB3 Gen 2 Lite 开发套件
随身记录仪
工业电脑
无人机
协作系统
行车记录仪
车辆网关
边缘计算盒子
机器人
监控摄像头
工业扫描仪
Qualcomm® RB3 Gen 2 Lite 开发套件组件
Core Kit:
• Development board based on the Qualcomm QCS5430 processor
• 12V wall power supply
• USB Type-C cable

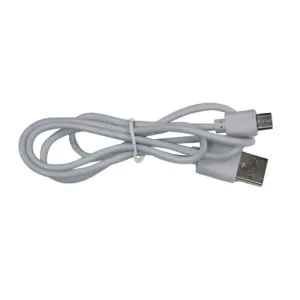

• Micro USB cable
• Mini speakers
• Setup guide
• Pick tool for setting switches
Vision Kit only:
• Mounting bracket for CSI cameras
• High-resolution CSI camera
• Low-resolution CSI camera
软件
• Support for Linux, Android
• Qualcomm® Intelligent Multimedia Product SDK (for Linux)
• Qualcomm® Intelligent Robotics Product SDK
• Qualcomm® Neural Processing SDK
• Hexagon SDK
兼容于
QCM/QCS5430 规格书
Feature Pack 1 | Feature Pack 2 | Feature Pack 2.5 | Feature Pack 3 | |
---|---|---|---|---|
Chipset | QCx5430 FP1 (Default Config) |
QCx5430 FP2 (Mid) |
QCx5430 FP2.5 (Mid-High)* |
QCx5430 FP3 (High)* |
CPU | 2 x A78@2.1GHz, 4 x A55@1.8GHz |
1 x A78@2.2 GHz, 3 x A78@2.13 GHz 4 x A55@1.8 GHz |
1 x A78@2.4 GHz, 3 x A78@2.38 GHz 4 x A55@1.8 GHz |
|
GPU | Qualcomm® Adreno™ 642L GPU @ 315 MHz | Adreno 642L GPU @ 550 MHz | ||
Support for OpenGL ES 3.2, OpenCL 2.0,Vulkan 1.x, DX FL 12 | ||||
Modem | Sub6+mmW: Him BP 4.3.x Rel 15 | |||
Memory (RAM) | uMCP package (6 GB LPDDR4x) | |||
Storage (onboard) | uMCP package (128 GB UFS Flash) | |||
Process Node/Technology | 6nm, 12mm x 14 mm; non-PoP | |||
Memory/Storage | Dual-channel, non-PoP LPDDR 5 / LPDDR 4X SDRAM, UFS 2.x/3.1, two-lane HS gear 4, SD v3.0, eMMC 5.1 | |||
Compute DSP | Hexagon DSP with dual HVX and 2K HMX(~3.5 INT8 TOPS) Clock Speed 1.4 GHz | ~6 INT8 TOPS | ~9 INT8 TOPS | |
Connectivity | WLAN: Wi-Fi6 (802.11ax) & Wi-Fi 6E (6 GHz), FM supported Uplink/Downlink MU-MIMO, 4K QAM, 160 MHz channels (5& 6 GHz) | |||
Display Technology | Adreno 1075 DPU, On-device Display Resolution: FHD+ (1080 x 2520 pixels) 8L @ 120 fps, 1x DSI D-PHY (4 -lane), DP1.4 SST | |||
Camera ISP | Qualcomm Spectra™ 570L ISP, Dual Camera: 2x22 MP | 3x22 MP | ||
Video | Up to 4K60 decode for H.264/H.265/VP; Up to 4K30 encode for H.264/H.265; Support for HDR10 and HDR10+ playback | |||
Audio | Qualcomm® Noise and Echo Cancellation V10, Integrated low-power VA (more keywords, Command First), Audio ML DSP:LPI, Shared 2 MB, 1.4 GHz | |||
Interfaces | USB Type-C 3.1, USB 2.0, UFS 2.x/3.1, eMMC 5.1, SD 3.0, 2x PCIe | |||
Security Features | Hardware Key Manager & ECC, Secure boot, Crypto Engine, Secure key provisioning, Qualcomm® Trusted Execution Environment, Qualcomm® Content Protection (Widevine, Camera Security Framework, Secure User Interface) | |||
Cellular Modem RF (QCM5430) | 400 MHz bandwidth (mmWave), 100 MHz bandwidth (sub-6 GHz) | |||
Location (QCM5430) | GPS, GLONASS, NavIC, BeiDou, Galileo, QZSS, and SBAS | |||
Benchmarks | LP5: Antutu: ~310K-340K | LP5: Antutu: ~350K-400K | LP5: Antutu: ~490K | |
OS Support | Android, LU, Windows, Linux | |||
Temp. Range | Tj:-30 to 105 C |

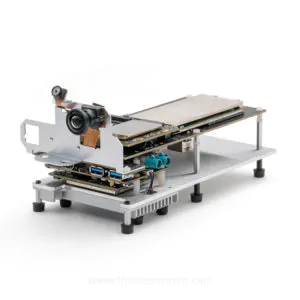

Qualcomm® RB3 Gen 2 Lite 开发套件 (Core Kit)
装箱清单:
• Development board based on the Qualcomm QCS5430 processor
• 12V wall power supply
• USB Type-C cable
• Micro USB cable
• Mini speakers
• Setup guide
• Pick tool for setting switches
• 12V wall power supply
• USB Type-C cable
• Micro USB cable
• Mini speakers
• Setup guide
• Pick tool for setting switches
Stock:
6
$389

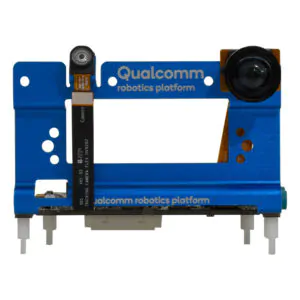

Qualcomm® RB3 Gen 2 Lite 开发套件 (Vision Kit)
装箱清单:
• Qualcomm® RB3 Gen 2 Lite Development Kit (Core Kit)
• Mounting bracket for CSI cameras
• High-resolution CSI camera
• Low-resolution CSI camera
• Mounting bracket for CSI cameras
• High-resolution CSI camera
• Low-resolution CSI camera
Stock:
10
$589
Qualcomm® RB3 Gen 2 Lite 开发套件:
IMX577 Camera Module
12MP Mipi camera module, FOV:120° (D)110°(H)75°(V)
装箱清单:
1 x IMX 577 camera module, 1 x FPC
Stock:
99996
$164
