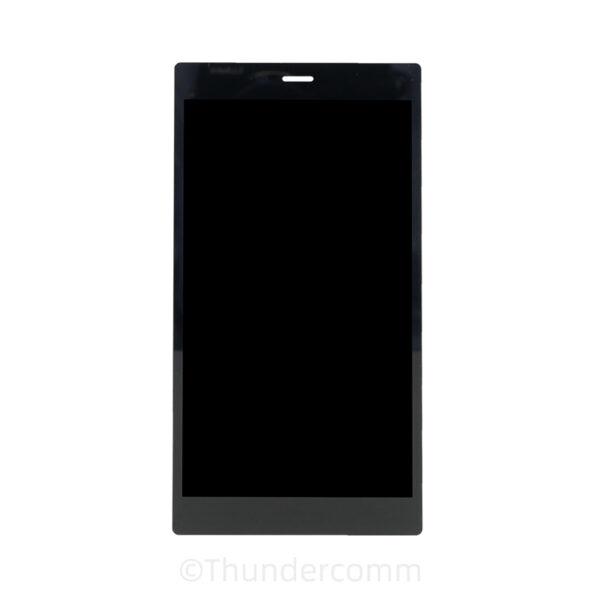

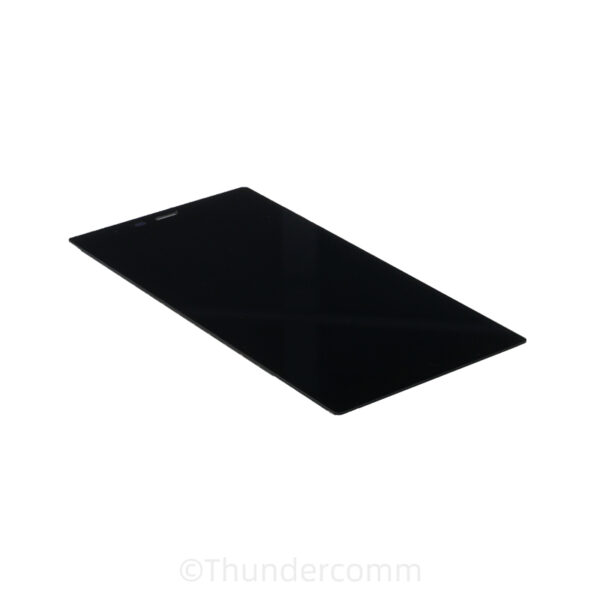

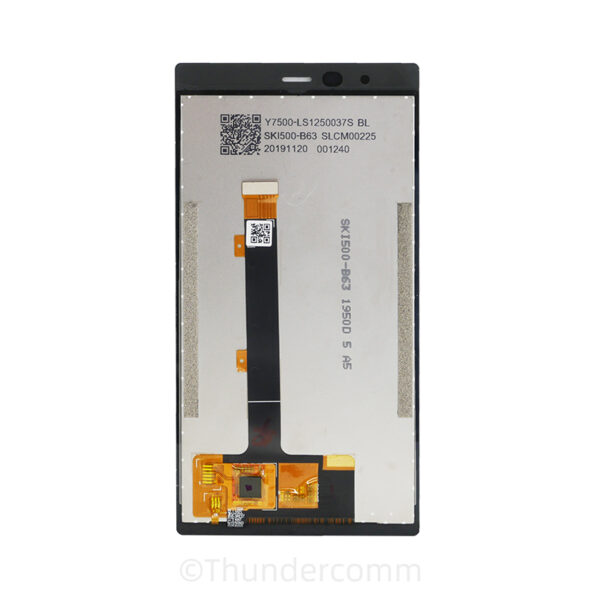

TFT-LCD显示屏模块
5.45英寸高清TFT-LCD显示模块,带多点触控面板。
应用领域:
Item | Specification | Unit |
LCD Size | 5.45 | inch |
Overall Dimension | 69.2*154.3*2.85mm (except FPC length) |
mm |
Active Area | 61.88*123.77mm | mm |
Resolution | 720*3(RGB)*1440dots | - |
Dot Pitch | 0.02865mm X 0.08595mm | mm |
Viewing Direction | ALL | - |
Display color | 16.7M colors | - |
Display Mode | TFT LCD, Transmissive Mode Normally black |
- |
LCD Driver | ILI9881P | - |
Interface Mode | MIPI Video 4-lane | - |
Operating Temperature | From -20 to +70 °C (dry) | - |
Storage Temperature | From -30 to +80 °C (dry) | - |
