7. Tools and Libraries Porting Guide

RUBIK Pi 3 has integrated the tools and libraries commonly used in development. If the tools needed during development are not integrated, refer to the following method of cec-client porting:

7.1 cec-client porting

First, set up the cross-compilation environment. For detailed steps, refer to 1.11.2. Install cross-compilation tools.
```
source <your toolchains directory>/environment-setup-armv8-2a-qcom-linux
```

Download libcec source code:

git clone https://github.com/Pulse-Eight/libcec

Go to the cec-client source directory and execute the code:
```
mkdir build
cmake .. -DCMAKE_INSTALL_PREFIX=../bin
make
```

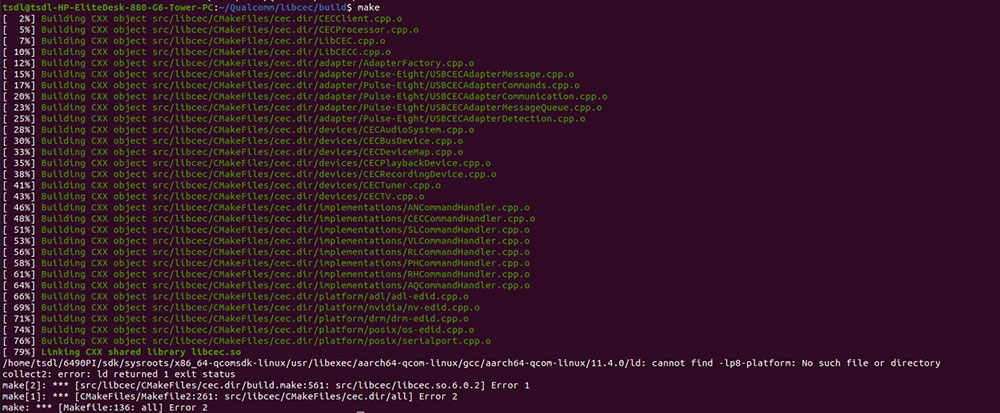

After the make command is run, the following error occurs, indicating that the p8-platform library is not available.

To solve the problem, cross-compile the p8-platform library.

Download p8-platform source code:

git clone https://github.com/Pulse-Eight/platform

Go to the platform folder and run the following commands:

mkdir build
cmake .. -DCMAKE_INSTALL_PREFIX=../bin
make

Go to the bin directory and copy the compilation artifact to the sysroot directory of the cross-compilation toolchain. As shown in the following code, /home/zhy/QCOM/sdk is the installation path of the cross-compilation tool. For details, refer to 1.12.2. Compile code.
```
cp libp8-platform.a /home/zhy/QCOM/sdk/sysroots/armv8-2a-qcom-linux/usr/lib/
```

Go back to the libcec directory and continue compilation:
```
cd libcec/build
make
```
After the compilation, run the following command to export the compilation artifact to the bin directory:
```
make install
```

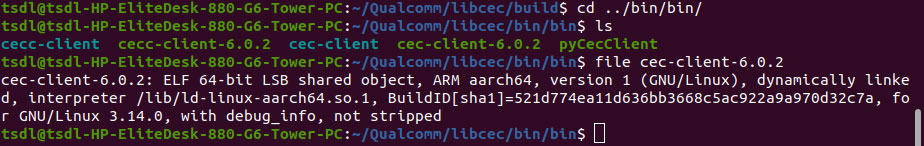

Run the following commands to view the compilation artifact. The cec-client tool has been generated, and the libcec library has been integrated into RUBIK Pi 3. Transfer cec-client to RUBIK Pi 3 for execution.

note
Transfer files using the ADB or SCP method.
```
    cd ../bin/bin
    ls

    file cec-client-6.0.2
```
